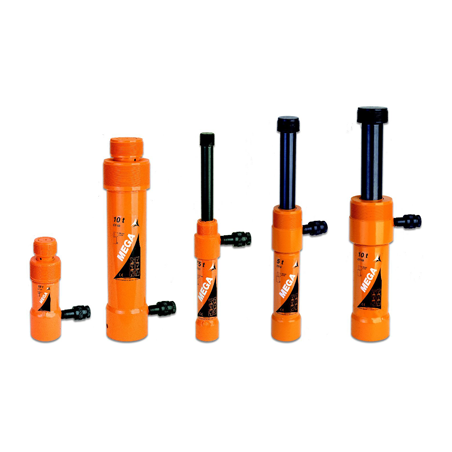

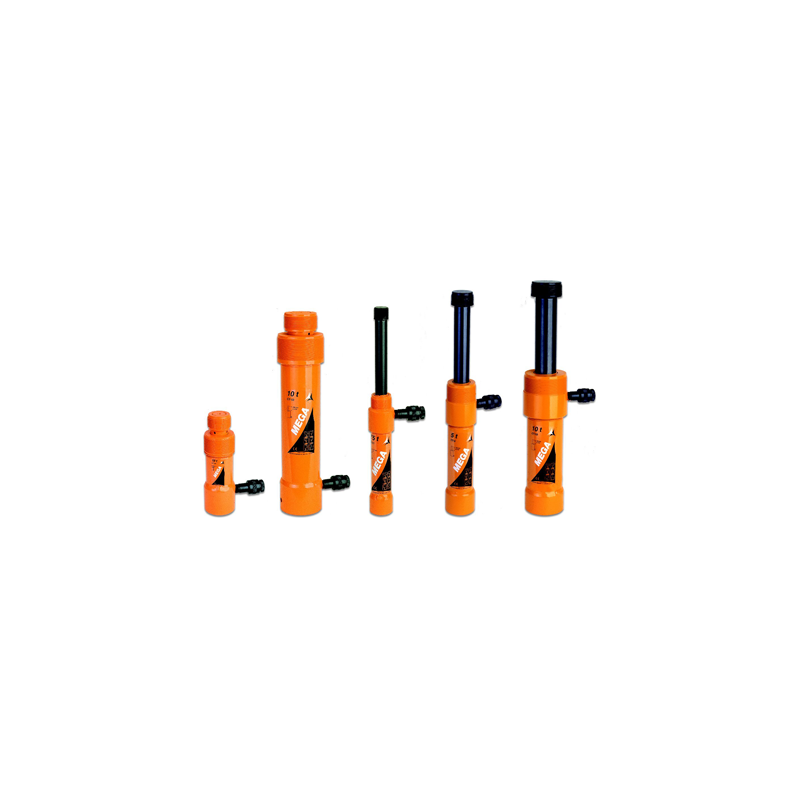

MEGA Hydraulic Cylinder Pushing Single Acting Spring Return CC-20B 20t
search
  • MEGA Hydraulic Cylinder Pushing Single Acting Spring Return CC-20B 20t

MEGA Hydraulic Cylinder Pushing Single Acting Spring Return CC-20B 20t

- Working pressure: 700 kg/cm2/10.000 psi.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;
- This piston has an induction hardening treatment or a salt bath nitriding process depending on the model;
- Each ram is equipped with a female quick coupler with air dust cap, ref. A-5507-H.
CC-20B

Data sheet

Ref
CC-20B
EAN
5608907326022
Brand
MEGA
Color
GREY
Minimum height
216 MM
Oil capacity
368 CM³
Rated Capacity
20 T
Stroke
130 MM
Weight
10 KG
Effective Area
28,57 CM²

Specific References

EAN13
5608907326022
