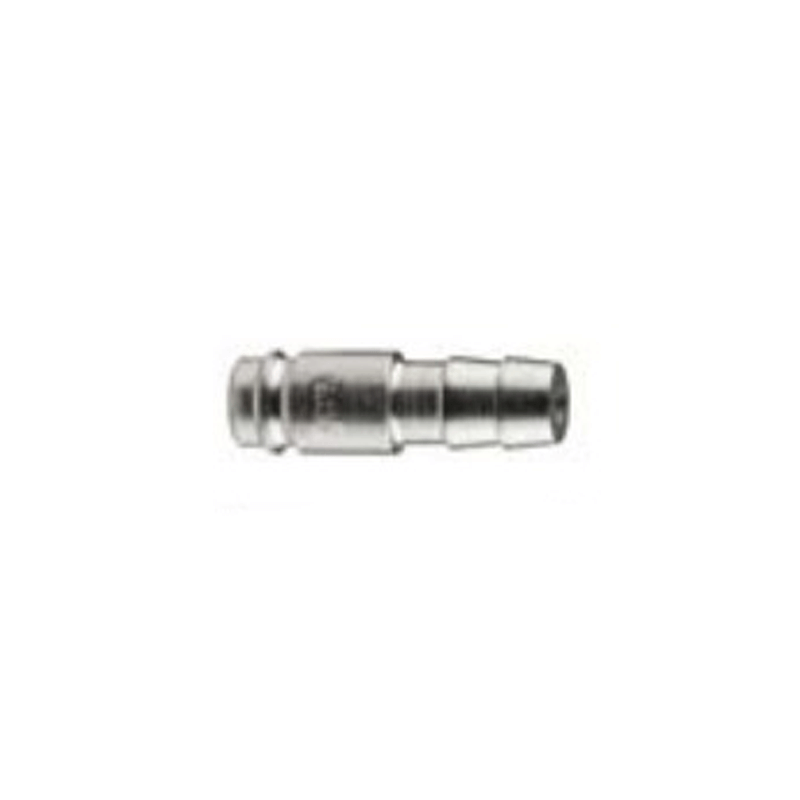

ANi Large Size Quick Fitting With Tailpiece 90-4 ø 10 mm

- Carbonitrided and zinc-plated steel./Nickel-plated brass;

- Compatible only with couplers of the series “90-R.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Large size zinc-plated steel bearing-type quick coupler with safety release system;

- Safety release system;

- Zinc-plated steel sleeve and body; COMPATIBILITY: Atlas Copco QIC 15 SE, ErgoQIC 15E- CEJN 410- LEGRIS 27 PARKER 55- RECTUS 27- TEMA 1700; FIELDS OF APPLICATION: Pneumatic circuits; OPERATING PRESSURE: 0 ÷ 16 bar (232 psi); OPERATING TEMPERATURE: -15°C (258°K) ÷ +80°C (353°K); NOMINAL DIAMETER: 10.5 mm; AIRFLOW at 6 bar: 4000 l/min (141.3cfm); MATERIALS USED: Zinc-plated steel (11SmnPb37 UNI EN 10277-3), Nickel-plated brass (UNI EN 12164 CW 614N); O-RINGS/WASHERS: NBR rubber washers; THREAD: Gas conical thread (BSPT)- DIN 2999- BS 21), Cylindrical gas thread- ISO 228 (BSPP).

AT020610

Scheda tecnica

Ref
AT020610
EAN
8022219408165
Marca
ANI

Riferimenti Specifici

ean13
8022219408165
