MEGA Hydraulic Cylinder Hollow Piston with Simple-Acting CSH-60 60t

- Working pressure: 700 kg/cm2/10.000 psi;

- The hollow cylinders can be used for general applications of pushing or lifting forces;

- With carrying handle.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;

- The hollow cylinders can be used for general applications of pushing or lifting forces;

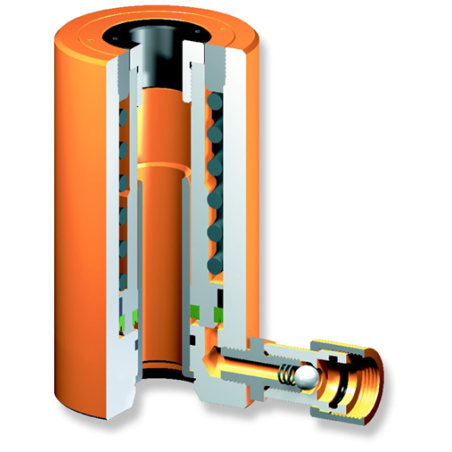

- Additionally, they feature a centre-hole piston which allows the insertion of a rod or screw, attachable to the threaded saddle, that travels through the cylinder for pulling or pushing operations;

- Ideal for tensioning, extracting, gear and pin removal etc;

- With carrying handle.

CSH-60

Technische Daten

Ref
CSH-60
EAN
5608907326275
Marca
MEGA
Cor
CINZENTO
Altura mínima
340 MM
Capacidade de óleo
640 CM³
Força nominal
60 T
Percurso
76 MM
Peso
26,6 KG
Seção útil
84,34 CM²

Besondere Bestellnummern

ean13
5608907326275
