  • MEGA Hydraulic Cylinder Pulling Single Acting Spring Return CT-5 5t

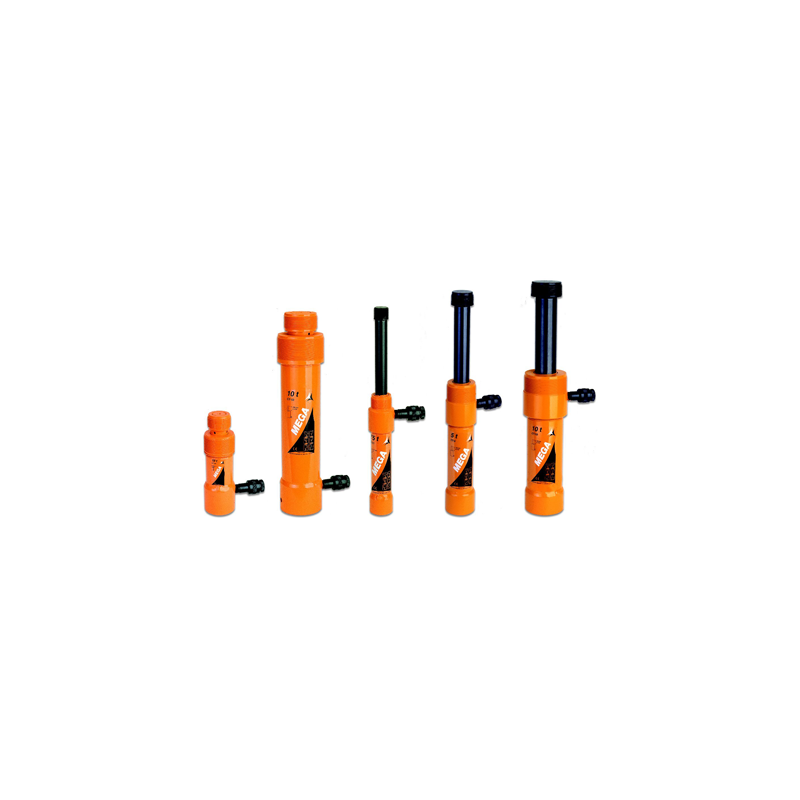

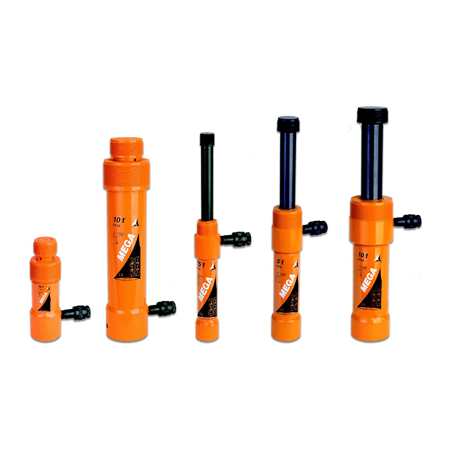

MEGA Hydraulic Cylinder Pulling Single Acting Spring Return CT-5 5t

- Working pressure: 700 kg/cm2/10.000 psi;

- With mounting holes and protected threaded areas against possible blows for easy coupling or special tooling applications.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;

- This piston has an induction hardening treatment or a salt bath nitriding process depending on the model;

- Each ram is equipped with a female quick coupler with air dust cap, ref. A-5507-H;

- With mounting holes and protected threaded areas against possible blows for easy coupling or special tooling applications;

- Unlike the pushing cylinders, the pulling rams retract toward the base to apply pressure;

CT-5

Technische Daten

Ref
CT-5
EAN
5608907326602
Marca
MEGA
Cor
CINZENTO
Altura mínima
318 MM
Capacidade de óleo
103 CM³
Força nominal
5 T
Percurso
138 MM
Peso
3,9 KG
Seção útil
7,45 CM²

Besondere Bestellnummern

ean13
5608907326602
