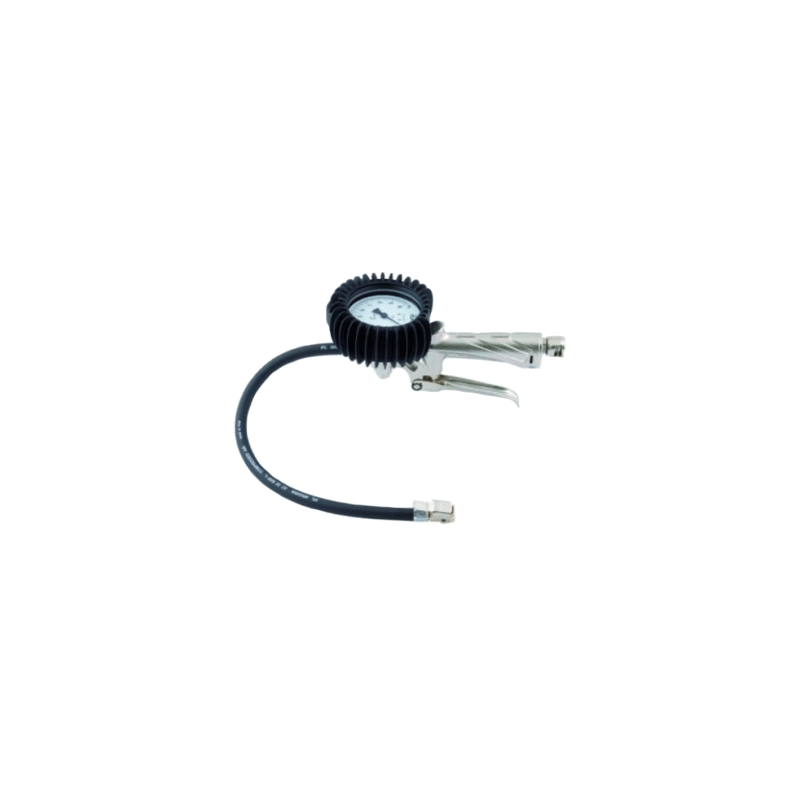

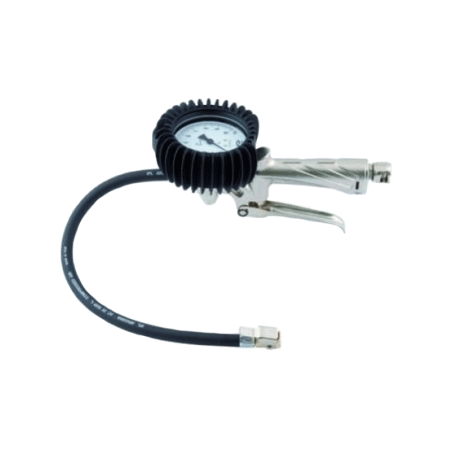

ANi Professional ECC Certified Tyre Inflating Gun With 400 mm Ø6.5x12 25/GR-60 CEE 11/A
search
  • ANi Professional ECC Certified Tyre Inflating Gun With 400 mm Ø6.5x12 25/GR-60 CEE 11/A

ANi Professional ECC Certified Tyre Inflating Gun With 400 mm Ø6.5x12 25/GR-60 CEE 11/A

- Nickel-plated aluminium body;
- EEC certified gauge Ø60 (complying with EN 12645);
- 0÷10 bar scale - precision class 1.6;
- 400 mm PVC hose Ø6.5x12.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- The 25/G are tyre inflating guns with nickel-plated aluminium alloy body. Ideal for the professional inflation of all kind of tyres. The guns are supplied with hose of various lengths and with chucks for single or double tires.Available with traditional gauge diameter 60 and 80 mm with EEC Homologation with Type Approval Certificate complying with EEC directive no. 86/217;
- Overpressure protection;
- Two-position inflate/deflate lever;
- Inflating chuck 25/W;
FIELDS OF APPLICATION: Tyre inflating;
MATERIALS USED:
- Body: Nickel-plated aluminium (Al Si 11 Cu 2 (Fe) UNI EN 1706);
- Hose: Rubber / PVC;
- Lever: Nickel-plated steel (Fe P01-P02-P04 UNI EN 10025);
- Rivet: Zinc-plated steel (CB4FF EN 10263/2);
- Valve: Brass (CW614N UNI-EN 12164) / NBR 70;
- Spring: Stainless steel (AISI 302 UNI EN 10088-3);
Seal washers: NBR;
OPERATING TEMPERATURE: -20°C (253°K), +60°C (333°K);
GUN CONNECTION THREAD: 1/4” F BSP Cylindrical gas thread.
AH062304

Data sheet

Ref
AH062304
EAN
8022219302777
Brand
ANI

Specific References

EAN13
8022219302777
