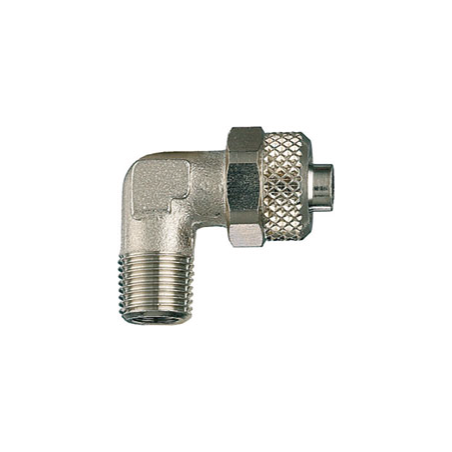

ANi Male Threaded Elbow Fitting For Nylon Hoses 40/CM 1/4M ø 8 x 6 mm

- Conical male thread ISO 7 (BSPT) - DIN 2999 - BS 21.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Fields of application: Pneumatic, oleodynamic and hydraulic circuits;
- Operating pressure: The maximum operating pressure depends on the pipe characteristics. Maximum pressure 16 bar (1;6 MPa);
- Operating temperature: -10°C (263°K) ÷+80°C (353°K);
- Pipes to be connected: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0,05 (ø 4÷ø10) - ±0,1 (ø12 ÷ ø 14);
- Materials used: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMA-15 (UNI EN 1774:99);
- Thread: Gas conical thread with PTFE ISO 7 (BSPT) - DIN 2999 - BS 21; Cylindrical gas thread - ISO 228 (BSPP);
- The products comply with the 2002/95/EG – RoHS directive.
AH032902

Data sheet

Ref
AH032902
EAN
8022219003391
Brand
ANI
ASIN code
B010AL7G0A
Weight
23 G
Shackle
1/4M
Diameter
8 X 6 MM
Thread height
11 MM

Specific References

EAN13
8022219003391
