ANi Italian Profile Quick Fitting With Spring 63/MF ø 10 x 12 mm
search
  • ANi Italian Profile Quick Fitting With Spring 63/MF ø 10 x 12 mm

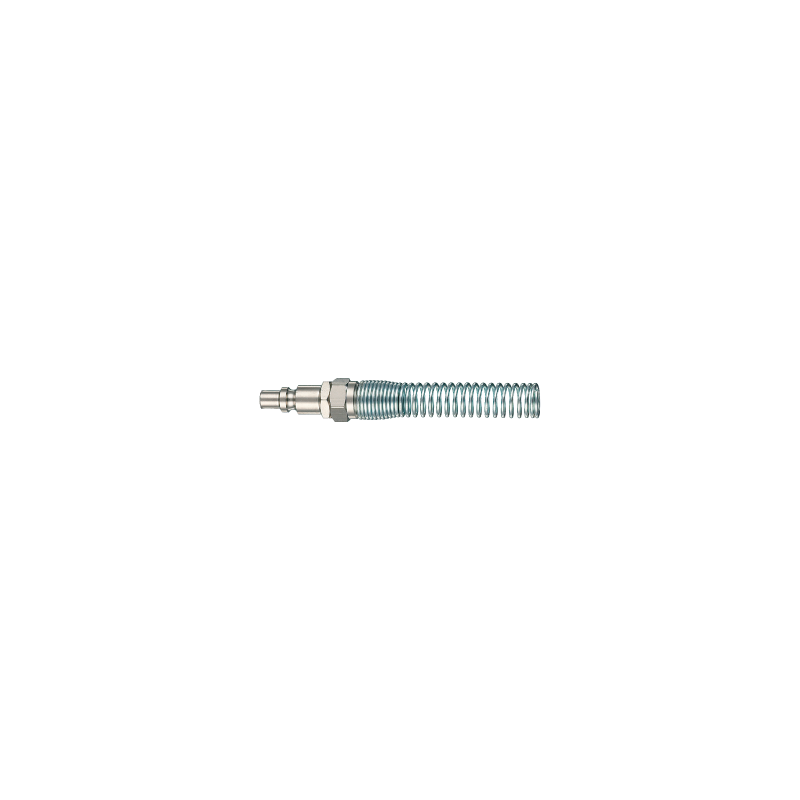

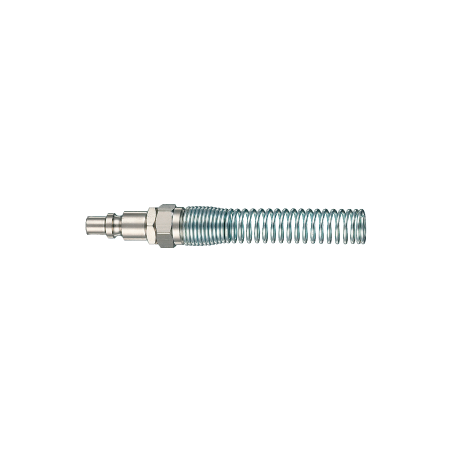

ANi Italian Profile Quick Fitting With Spring 63/MF ø 10 x 12 mm

- 15/A italian profile quick fitting with spring;
- Nickel plated brass / Zinc-plated steel.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- CONNECTING PIPES: Platic hoses in polyurethane (PU), polyethylene (PE) polyamide (PA-PA11/12) - polyester (PET) - INTERWOVEN PVC - PTFE – FEP;
- OPERATING PRESSURE: Maximum recommended pressure 18 bar;
- TEMPERATURE: The temperature depends on the pipe characteristics;
- MATERIALS USED: Body/Clamping nut: Nickel-plated brass (UNI EN 12164 CW 614N) Springs: C85 Spring steel C85;
- O-RINGS / WASHERS: Oil-resistant, silicone-free NBR washers;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Cylindrical gas thread - ISO 228 (BSPP).
AH034304

Data sheet

Ref
AH034304
EAN
8022219003872
Brand
ANI
ASIN code
B00B86U1DG
Lenght
130 MM
Model
63/MF
Weight
56 G
Spring length
92 MM
Outer spring diameter
12 MM
Inside diameter shackle
4,5 MM
Inner diameter spring
10 MM

Specific References

EAN13
8022219003872
