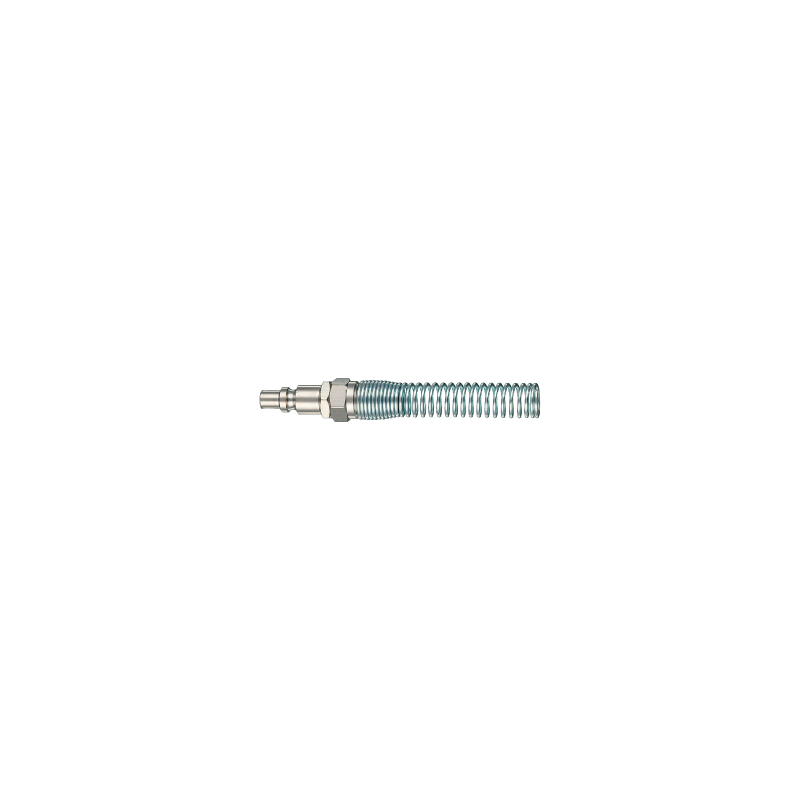

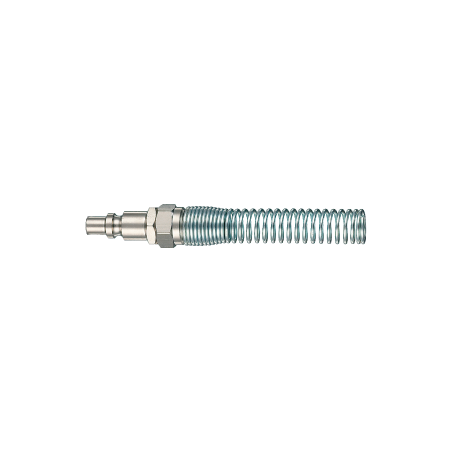

ANi German Profile Quick Fitting With Spring 63/MF OMNI ø 8 x 10 mm

- 15/A OMNI quick fitting;
- Carbonitrided and zinc-plated steel;
- COMPATIBILITY CEJN 320 - RECTUS 26;
- Nickel plated brass / Zinc-plated steel.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- CONNECTING PIPES: Platic hoses in polyurethane (PU), polyethylene (PE) polyamide (PA-PA11/12) - polyester (PET) - INTERWOVEN PVC - PTFE – FEP;
- OPERATING PRESSURE: Maximum recommended pressure 18 bar;
- TEMPERATURE: The temperature depends on the pipe characteristics;
- MATERIALS USED: Body/Clamping nut: Nickel-plated brass (UNI EN 12164 CW 614N) Springs: C85 Spring steel C85;
- O-RINGS / WASHERS: Oil-resistant, silicone-free NBR washers;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Cylindrical gas thread - ISO 228 (BSPP).
AH034306

Data sheet

Ref
AH034306
EAN
8022219003896
Brand
ANI
Lenght
120 MM
Model
63/MF OMNI
Weight
66 G
Spring length
70 MM
Outer spring diameter
10 MM
Inside diameter shackle
6 MM
Inner diameter spring
8 MM

Specific References

EAN13
8022219003896
