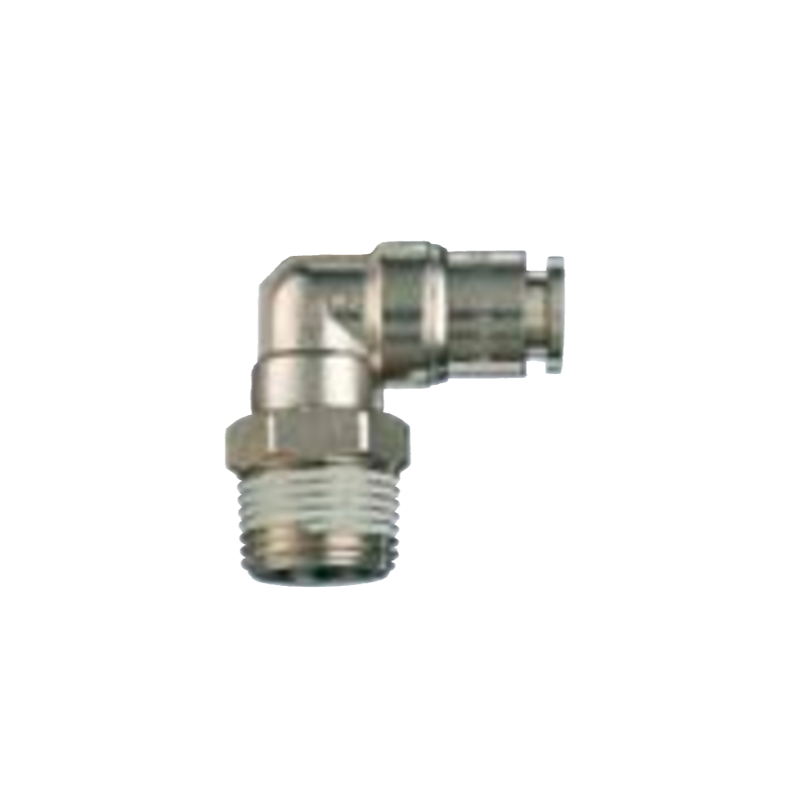

ANI Male Swivel Fitting L 50/CG M 1/4 M ø 10mm

- Conical male thread ISO 7 (BSPT)- DIN 2999- BS 21 with PTFE.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

FIELDS OF APPLICATION: Pneumatic circuits;
OPERATING PRESSURE:
- The maximum operating pressure depends on the pipe characteristics;
- Maximum pressure 16 bar (1.6 MPa);
OPERATING TEMPERATURE: -10°C (263°K) ÷ +80°C (353°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) ±0,05 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 14);
MATERIALS USED: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMAK-15 (UNI EN 1774: 99);
O-RINGS/WASHERS: Oil-resistant, silicone-free NBR washers;
THREAD:
- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;
- Cylindrical gas THREAD: - ISO 228 (BSPP);
The products comply with the 2002/95/EG – RoHS directive.
AH037408

Data sheet

Ref
AH037408
EAN
8022219161688
Brand
ANI

Specific References

EAN13
8022219161688
