  • ANi M/F - Threaded Line Tap AIR/21 1/4 M

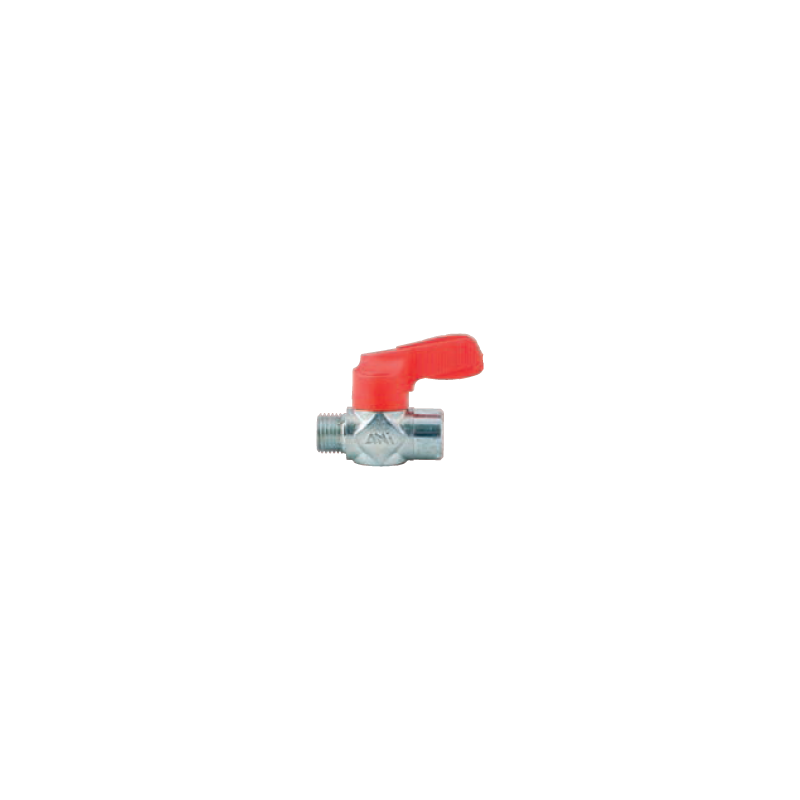

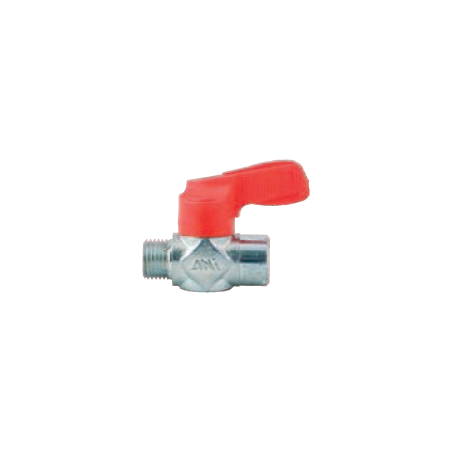

ANi M/F - Threaded Line Tap AIR/21 1/4 M

- Cylindrical gas thread - ISO 228 (BSPP).
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Zamak line taps for normal ad special applications with opening and closing lever in acetal resin, suitable for air, water up to 100° C, grease and oil;
- TECHNICAL DATA: The AIR tap is made of 3 pieces automatically fastened together;Zamak body, valve in engineering plastic with oil-resistant rubber cover granting double seal and pressure balance for a better safety with a minimum rotation effort; Red acetal resin lever;
- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- FEATURES: Large air throughput without pressure losses; Min; Operating effort; Adjustable airflow; Long-lasting; Good air tightness;
- OPERATING PRESSURE: Maximum recommended pressure 20 bar;
- OPERATING TEMPERATURE: -20°C (253°K), +100°C (373°K);
- MATERIALS USED: Body: Nickel-plated ZAMAK-5 (UNI EN 1774:99); Valve: Engineering plastic + oil-resistant NBR rubber; Lever: Red acetal resin;
- Nut: Nickel-plated ZAMAK-5 (UNI EN 1774:99);
- THREAD: Cylindrical Gas Thread - ISO 228 (BSPP).
AH043007

Data sheet

Ref
AH043007
EAN
8022219008082
Brand
ANI
Model
AIR/21
Weight
51 G
Shackle
1/4F
1/4M
Thread height 1
8,5 MM
Thread height 2
10 MM

Specific References

EAN13
8022219008082
