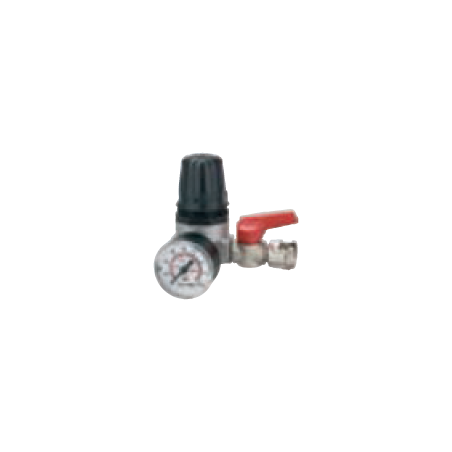

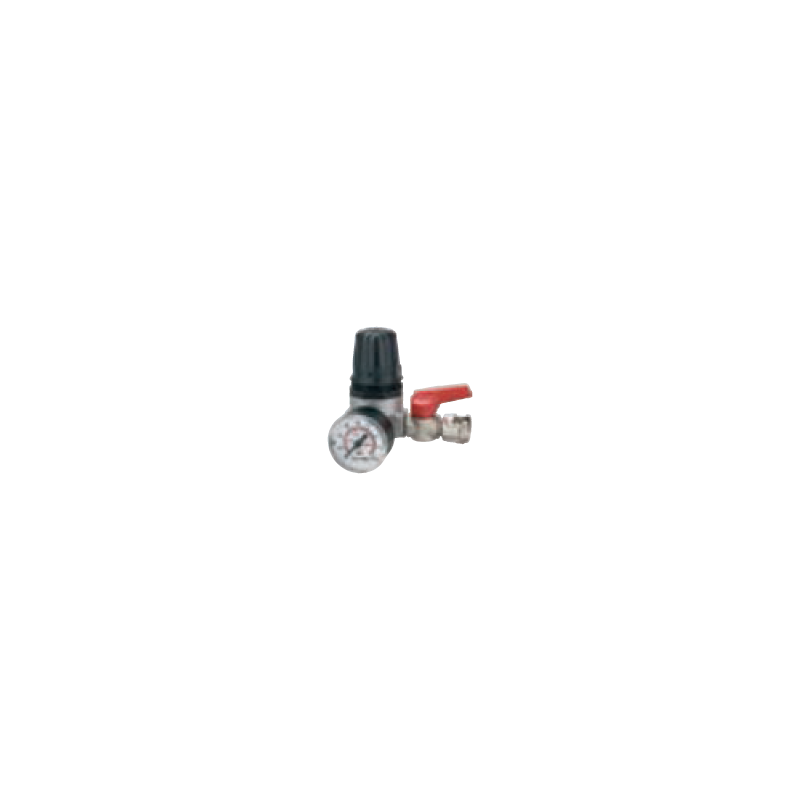

ANi Pressure Regulator With Gauge - 31/A4 Air11 1/4' BSP

- Pressure regulator with round gauge Ø 40 mm, 0-16 bar ÷ 0-230 psi scale. (class 2.5);
- Line tap (mod. 1/A4- AIR 11 ÷ 31/A7- AIR 11);
- Quick coupler 17/AM (mod. 31/A8 ÷ 31/A9);
- Piston-type pressure regulation system;
- Regulation knob with locking device and threaded fastening ring in engineering polymer;
- Pressure release valve for overpressure and relieving function supplied as standard.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Pressure regulator with round gauge Ø 40 mm, 0-16 bar ÷ 0-230 psi scale. (class 2.5);
- Line tap (mod. 1/A4- AIR 11 ÷ 31/A7- AIR 11);
- Quick coupler 17/AM (mod. 31/A8 ÷ 31/A9);
- Piston-type pressure regulation system;
- Regulation knob with locking device and threaded fastening ring in engineering polymer;
- Pressure release valve for overpressure and relieving function supplied as standard.
FIELDS OF APPLICATION: Compressed air;
MATERIALS USED:
Body: Sandblasted aluminium (GZn Al4 Cu1 UNI EN 1774);
Knob/Ring/Piston/Valve: Engineering polymer;
Stange: Brass (CW614N UNI-EN 12164);
Screw: Steel class 4.8 DIN 7985;
Springs: Stainless steel (AISI 302 UNI EN 10088-3) Class C steel UNI 3823- Steel Acier;
Seal washers: NBR/PTFE rubber;THREAD: 31/S4- AIR 11 1/4” BSP- bayonet fitting; 31/A7- N°2 AIR 11 1/4” BSP- bayonet fitting; 31/A8- 17/AM 1/4” BSP- quick coupler;31/A9- N°2 17/AM 1/4” BSP- quick coupler;
OPERATING TEMPERATURE: -25°C (13°F), +50°C (122°F);
OPERATING PRESSURE: 1.5÷9 bar (22 psi÷ 130 psi);
THR
AH102001

Data sheet

Ref
AH102001
EAN
8022219041317
Brand
ANI

Specific References

EAN13
8022219041317
