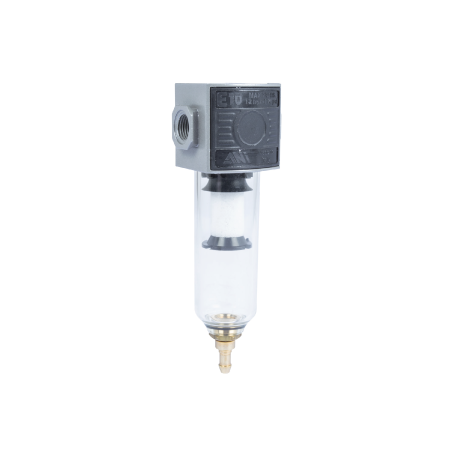

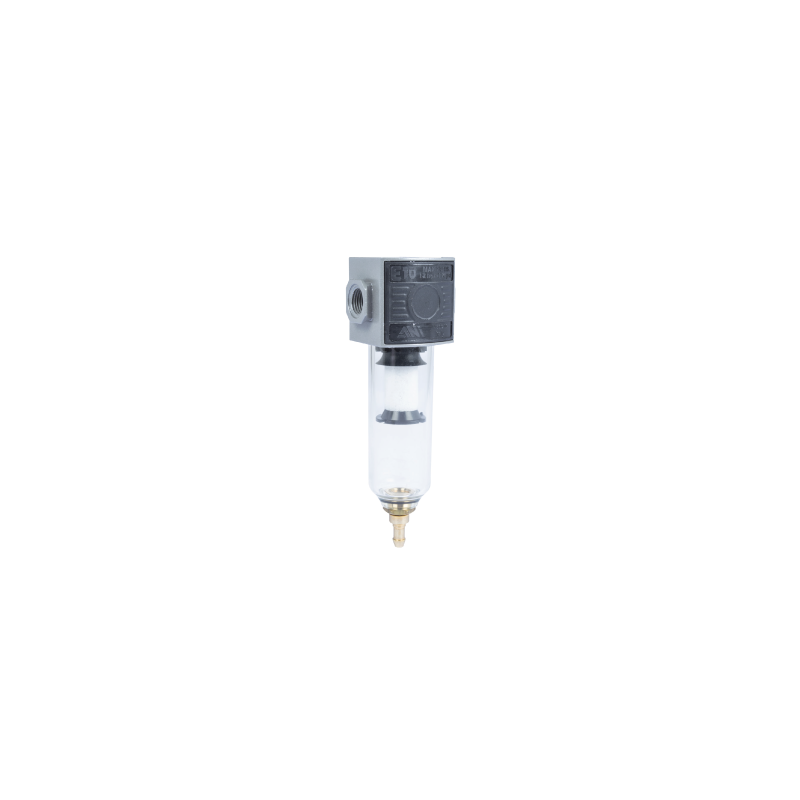

ANi Modular Air Filter - E/14 Mignon E/14/2 1/4' BSP

- These filter pressure regulators are all-in-one units combining a pressure regulator and a filter unit;
- It is designed to remove solid and liquid impurities from the air lines;
- They are modular filters equipped with a PE filter cartridge that contains impurities of more than 40μ in size;
- Different filter classifications can be supplied upon request: 5μ or 20μ;
- The modular nature of the devices means that a series of elements of the same family with different functions can be assembled toform a single unit;
- Metal body coated with epoxy powder;
- Technopymer of 20 cm3 (series E/10) or 50 cm3 (series E/20) or metal platform;
- Semi-automatic or manual drainage device (upon request). Complete with lace to fix the drain hose. (Automatic drain device available only for E/24/SC mod.);
- Swirl system for efficient condensate separation;
- Pressure regulation of the piston system;
- Overpressure relief valve, standard problem;
- Control button with locking system and threaded fixing ring made of technopo
