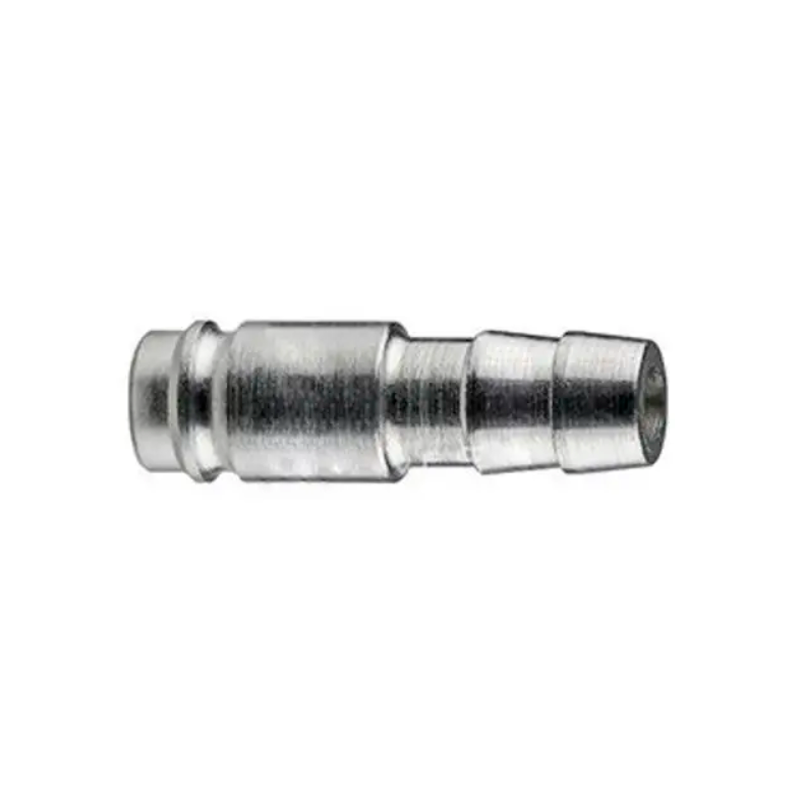

ANI Large Size Quick Connect Coupler with Skin 90-4 ø 19mm

- Carbonitrided and zinc-plated steel./Nickel-plated brass;
- Compatible only with couplers of the series “90-R.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Large size zinc-plated steel bearing-type quick coupler with safety release system;
- Safety release system;
- Zinc-plated steel sleeve and body;
COMPATIBILITY: Atlas Copco QIC 15 SE, ErgoQIC 15E- CEJN 410- LEGRIS 27 PARKER 55- RECTUS 27- TEMA 1700;
FIELDS OF APPLICATION: Pneumatic circuits;
OPERATING PRESSURE: 0 ÷ 16 bar (232 psi);
OPERATING TEMPERATURE: -15°C (258°K) ÷ +80°C (353°K);
NOMINAL DIAMETER: 10.5 mm;
AIRFLOW at 6 bar: 4000 l/min (141.3cfm);
MATERIALS USED: Zinc-plated steel (11SmnPb37 UNI EN 10277-3), Nickel-plated brass (UNI EN 12164 CW 614N);
O-RINGS/WASHERS: NBR rubber washers;
THREAD: Gas conical thread (BSPT)- DIN 2999- BS 21), Cylindrical gas thread- ISO 228 (BSPP).
AT020613

Data sheet

Ref
AT020613
EAN
8022219408196
Brand
ANI

Specific References

EAN13
8022219408196
