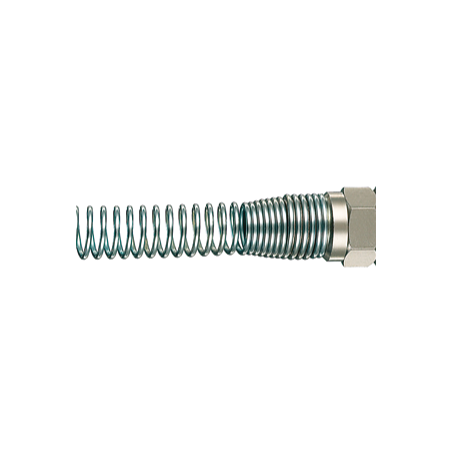

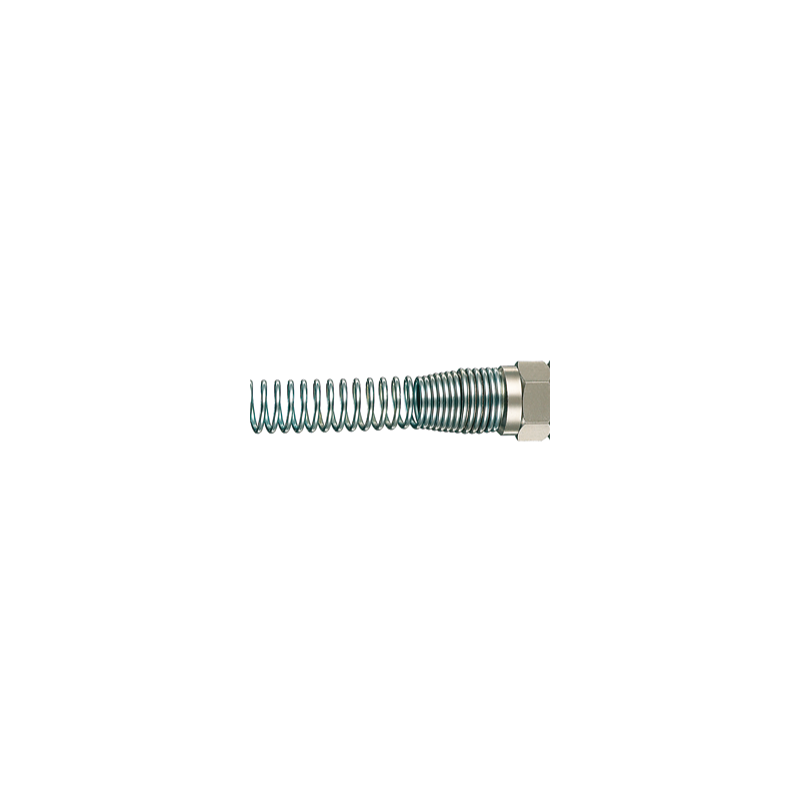

ANi Bayonet Connector With Spring 60/MG ø 6 x 8 mm

- Bayonet chuck;
- MG = Swivelling.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- CONNECTING PIPES: Platic hoses in polyurethane (PU), polyethylene (PE) polyamide (PA-PA11/12) - polyester (PET) - INTERWOVEN PVC - PTFE – FEP;
- OPERATING PRESSURE: Maximum recommended pressure 18 bar;
- TEMPERATURE: The temperature depends on the pipe characteristics;
- MATERIALS USED: Body/Clamping nut: Nickel-plated brass (UNI EN 12164 CW 614N) Springs: C85 Spring steel C85;
- O-RINGS / WASHERS: Oil-resistant, silicone-free NBR washers;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Cylindrical gas thread - ISO 228 (BSPP).
AH034002

Data sheet

Ref
AH034002
EAN
8022219003537
Brand
ANI
ASIN code
B00B81IQQU
Lenght
98 MM
Model
60/MG
Weight
47 G
Spring length
70 MM
Outer spring diameter
8 MM
Inside diameter shackle
4,5 MM
Inner diameter spring
6 MM

Specific References

EAN13
8022219003537
