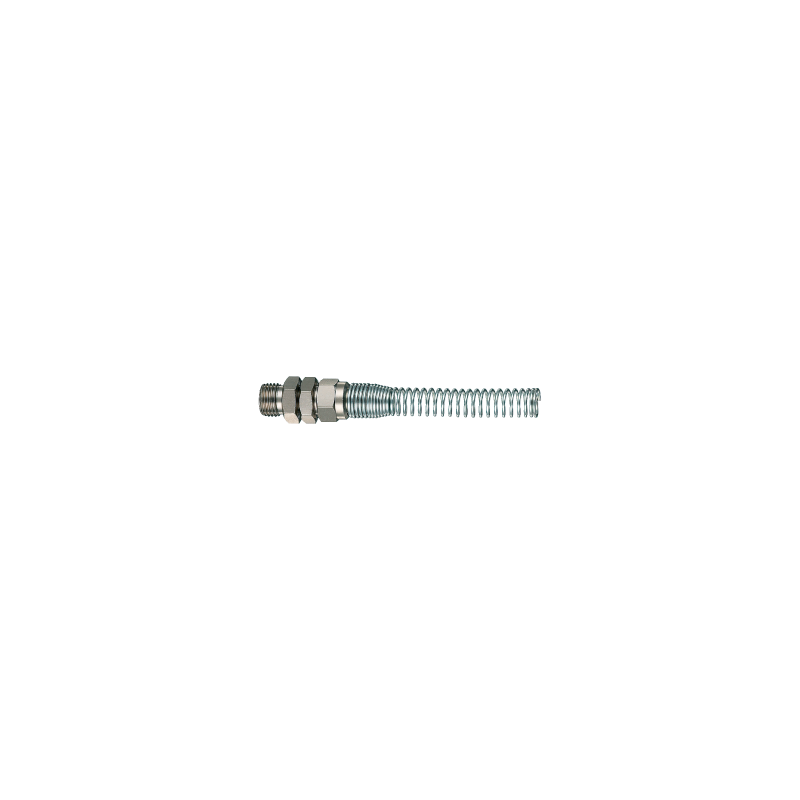

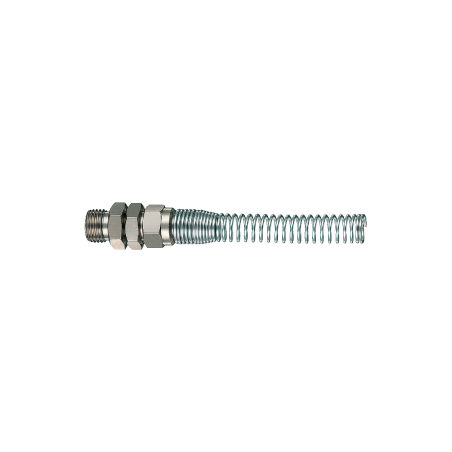

ANi Male Threaded Connector With Spring 61/MF 1/4M ø 6 x 8 mm
search
  • ANi Male Threaded Connector With Spring 61/MF 1/4M ø 6 x 8 mm

ANi Male Threaded Connector With Spring 61/MF 1/4M ø 6 x 8 mm

- Cylindrical male thread ISO 228 (BSPP);
- MF = Fixed.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- CONNECTING PIPES: Platic hoses in polyurethane (PU), polyethylene (PE) polyamide (PA-PA11/12) - polyester (PET) - INTERWOVEN PVC - PTFE – FEP;
- OPERATING PRESSURE: Maximum recommended pressure 18 bar;
- TEMPERATURE: The temperature depends on the pipe characteristics;
- MATERIALS USED: Body/Clamping nut: Nickel-plated brass (UNI EN 12164 CW 614N) Springs: C85 Spring steel C85;
- O-RINGS / WASHERS: Oil-resistant, silicone-free NBR washers;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Cylindrical gas thread - ISO 228 (BSPP).
AH034101

Data sheet

Ref
AH034101
EAN
8022219003582
Brand
ANI
ASIN code
B010AJRZLC
Lenght
96 MM
Model
61/MF
Weight
37 G
Shackle
1/4M
Spring length
70 MM
Outer spring diameter
8 MM
Inside diameter shackle
4 MM
Inner diameter spring
6 MM
Hose fitting length
11 MM

Specific References

EAN13
8022219003582
