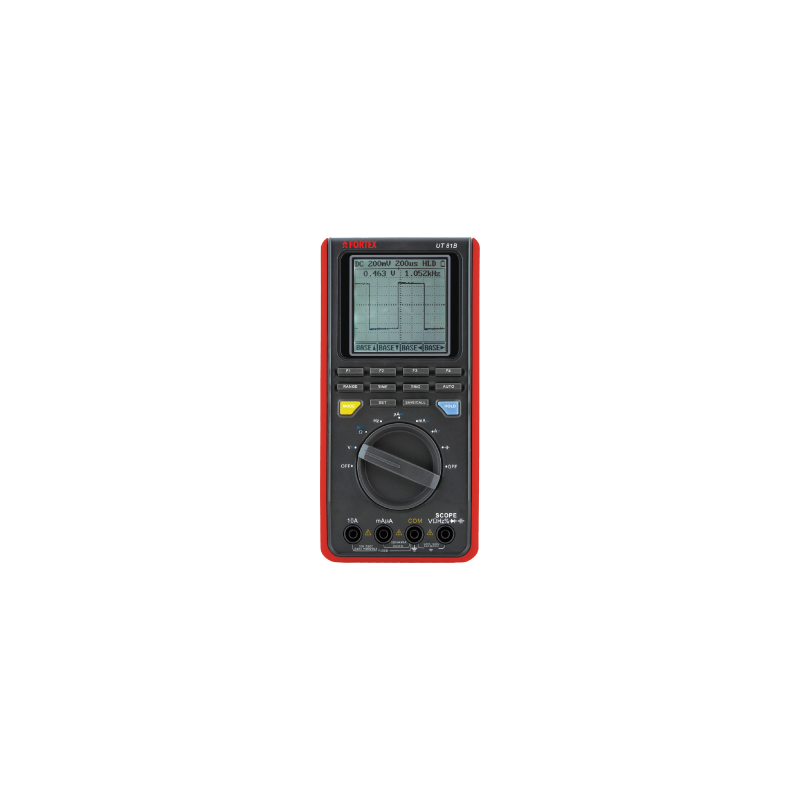

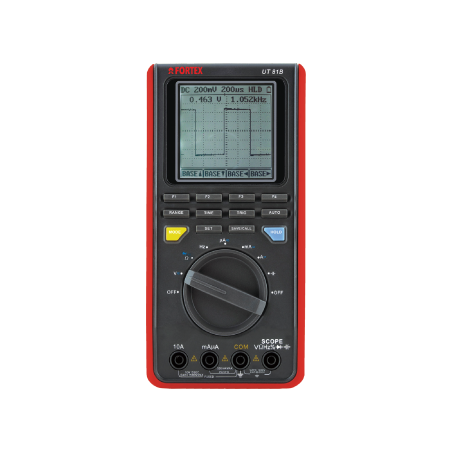

BELFLEX Scope Digital UT81B
search
  • BELFLEX Scope Digital UT81B

BELFLEX Scope Digital UT81B

- Supplied with 1 x software which includes USB data cable;
- 1 x set of test leads;
- 1 x carrying bag;
- 1 x AC adapter / charger;
- Double safety insulation CAT;
- II 1000V, CAT.III 600V, IEC 61010;
- DC Current: 400μA/4000μA/40mA/400mA/4A/10A;
- AC Current: 400μA/4000μA/40mA/400mA/4A/10A;
- Resistance: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- The handheld oscilloscope mod.UT 81B is a multifunction meter;
- The combination of oscilloscope and multimeter makes it a very helpful tool for the workshop;
- Auto-Set function to work quickly and easily;
- It has since USB to transfer data to the computer;
- Measures current and voltage AC / DC, resistance, capacitance and frequency;
- You also have the following test functions: diodes, continuity buzzer, internal memory allowing you to recover up to 10 signals, input impedance for measuring DC voltage (about 10MΩ), standby mode and low battery warning;
- Max. display 3999.
AB520000005

Data sheet

Ref
AB520000005
EAN
8423640142008
Brand
BELFLEX
ASIN code
B00LXCJHJO
Capacity
40NF/400NF/4ΜF/40ΜF/100ΜF
Weight
498 GR
Battery
6 X 1,5V (R6)
Product size
200 X 100 X 48 MM
LCD size
60 X 60 MM
Duty Cycle
0,1% - 99,9%
Trigger types
NORMAL, SÓ 1 TIRO
Frequency
10HZ - 10MHZ
Real-time sample rate
40MS/S
Timebase range
100NS/DIV - 5S/DIV (1-2-5)
Band with
8MHZ
Capacitance accuracy
± 3% + 8
AC current accuracy
± 1,5% + 8
DC current accuracy
± 1% + 8
Frequency accuracy
± 1% + 3
Horizontal accuracy
± 0,01% + 1
Resistance accuracy
± 1% + 5
AC voltage accuracy
± 1% + 15
DC voltage accuracy
± 0,8% + 8
Vertical accuracy
± 5% + 1
Display resolution
160 X 160
Input sensitivity
20MV/DIV - 500V/DIV (1-2-5)
AC voltage
4V/40V/400V/750V
DC voltage
400MV/4V/40V/400V/1000V

Specific References

EAN13
8423640142008
