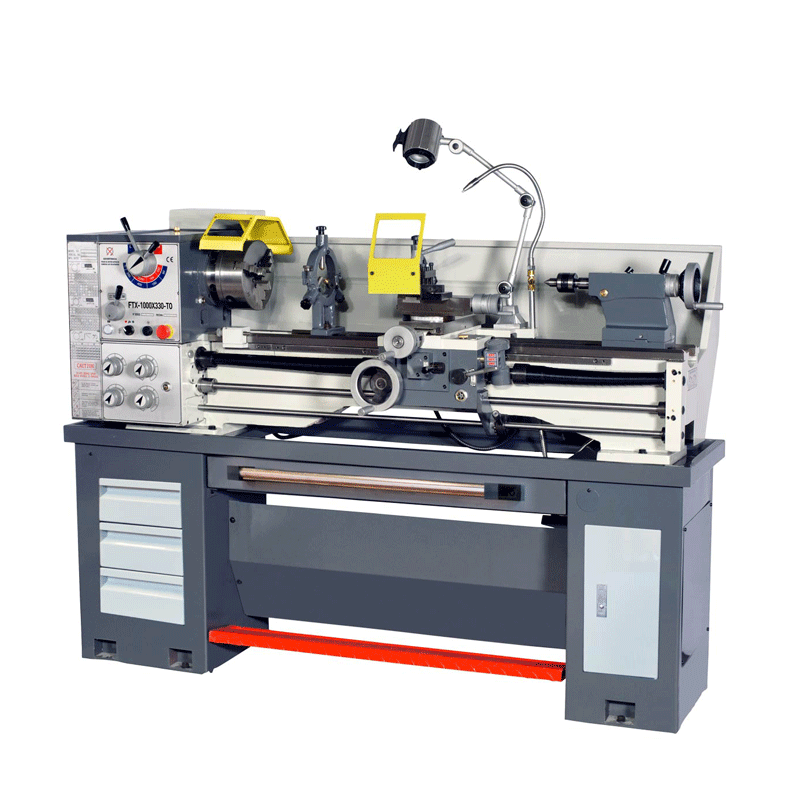

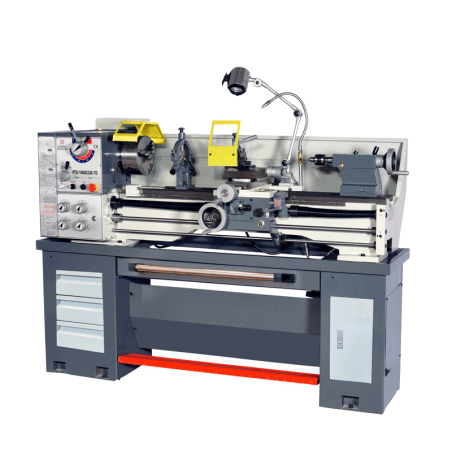

BELFLEX Industrial Lathe Machine for Metal BF-1000-TME
search
  • BELFLEX Industrial Lathe Machine for Metal BF-1000-TME

BELFLEX Industrial Lathe Machine for Metal BF-1000-TME

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

AB441065000

Data sheet

Ref
AB441065000
EAN
8423640144385
Brand
BELFLEX
ASIN code
B01KOMZBUM
Weight
640 KG
Dimensions
1940 X 760 X 1520 MM
Speed change
ENGRENAGEM
Taper of tailstock sleeve
MT3
Diameter tailstock sleev
32 MM
Max. swing over bed
330 MM
Max. swing over gap
450 MM
Max. swing over cross slide
198 MM
Distance between centres
1000 MM
Long. feeds range
0,052-1,392 MM/REV.
Cross feeds range
0,09-0,253 MM/REV.
Metric threads range
26 TIPOS / 0,4-7 MM
Inch threads range
34 TIPOS / 4-56 TPI
Spindle bore
51 MM
Travel tailstock sleeve
100 MM
Number of speeds
8
Taper spindle bore
MT6
Power input
1,5 KW - 2 HP
Spindle speed range
70-2000 RPM
DRO X-Y
NÃO
Voltage
400V-F3

Specific References

EAN13
8423640144385
