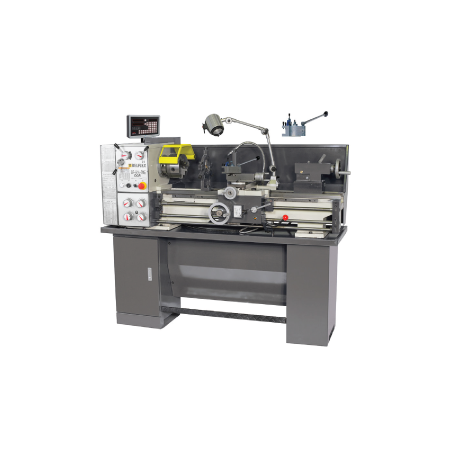

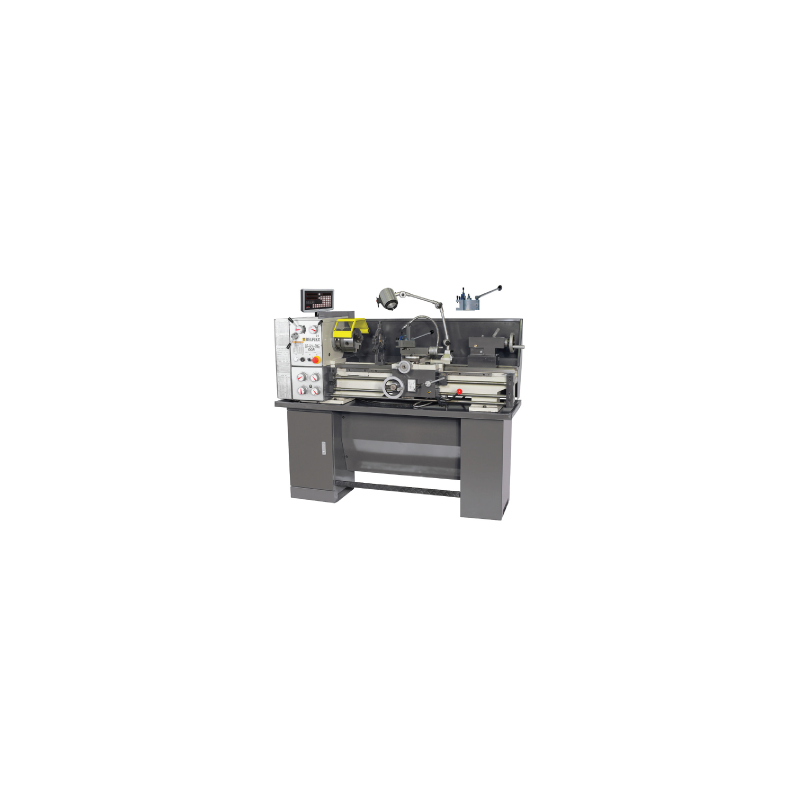

BELFLEX Industrial Machine for Metal BF-914-TME DCR

Included accessories:
- 3 jaws Chuck Ø160 mm;
- 4 jaws Chuck Ø200 mm;
- Faceplate;
- MT-3 Chuck Drills;
- MT-3 Revolving Centre;
- MT-3 Centre;
- Follow & Steady rest;
- Kit of Tools;
- Work lamp and cooling system;
- Stand.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- With rear chip guard, Coolant pump, foot brake, automatic gear box with gears in oil bath;
- Spindle with conical roller bearings, hardened bedways;
- Limit micro switch in cover and chuck guard;
- Automatic longitudinal and cross travel.
AB441080000

Data sheet

Ref
AB441080000
EAN
8423640964624
Brand
BELFLEX
Weight
480 KG
Dimensions
1680 X 750 X 1470 MM
Speed change
ENGRENAGEM
Taper of tailstock sleeve
MT3
Diameter tailstock sleev
32 MM
Max. swing over bed
310 MM
Max. swing over gap
450 MM
Max. swing over cross slide
180 MM
Distance between centres
910 MM
Long. feeds range
0,0527-1,2912 MM/REV.
Cross feeds range
0,014-0,3448 MM/REV.
Metric threads range
32 TIPOS/ 0,4-7 MM
Inch threads range
36 TIPOS/ 4-60 TPI
Spindle bore
38 MM
Travel tailstock sleeve
100 MM
Number of speeds
18
Taper spindle bore
MT5
Power input
1,1 KW - 1,5 HP
Spindle speed range
65-1810 RPM
DRO X-Y
SIM
Voltage
400V-F3

Specific References

EAN13
8423640964624
