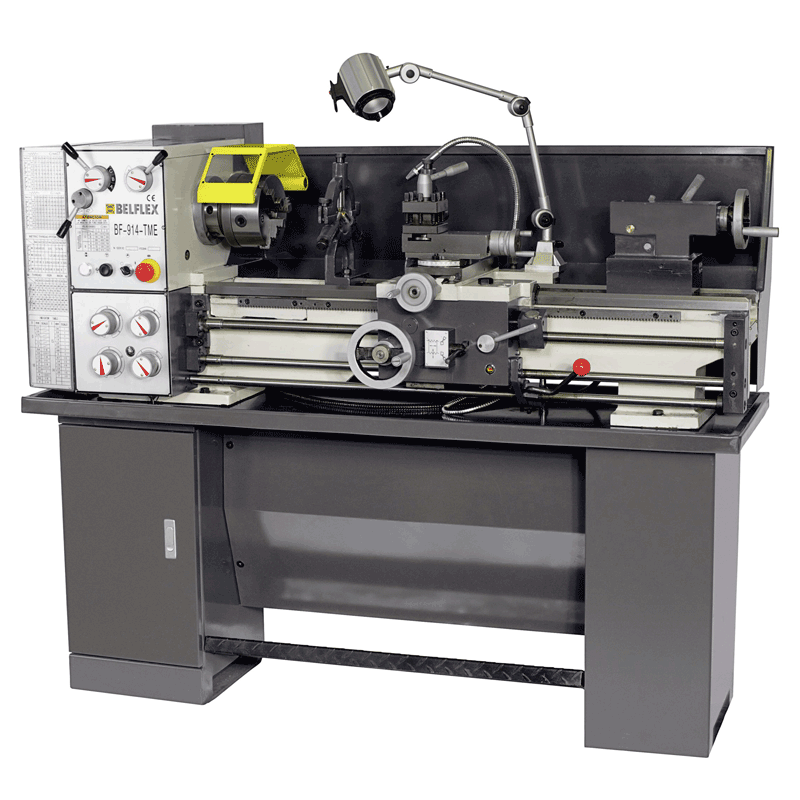

BELFLEX Industrial Machine for Metal BF-914-TME

Name: BELFLEX Industrial Machine for Metal BF-914-TME
Brand: BELFLEX
SKU: AB441085000

Included accessories:
- 3 jaws Chuck Ø160 mm;
- 4 jaws Chuck Ø200 mm;
- Faceplate;
- MT-3 Chuck Drills;
- MT-3 Revolving Centre;
- MT-3 Centre;
- Follow & Steady rest;
- Kit of Tools;
- Work lamp and cooling system;
- Stand.

Security policy

Security policy (edit with the Customer Reassurance module)

Delivery policy

Delivery policy (edit with the Customer Reassurance module)

Return policy

Return policy (edit with the Customer Reassurance module)

Description
Product Details

- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- With rear chip guard, Coolant pump, foot brake, automatic gear box with gears in oil bath;
- Spindle with conical roller bearings, hardened bedways;
- Limit micro switch in cover and chuck guard;
- Automatic longitudinal and cross travel.

Reference AB441085000

Data sheet

Ref: AB441085000
EAN: 8423640961753
Brand: BELFLEX
ASIN code: B01KOMZ2X8
Weight: 480 KG
Dimensions: 1680 X 750 X 1470 MM
Speed change: ENGRENAGEM
Taper of tailstock sleeve: MT3
Diameter tailstock sleev: 32 MM
Max. swing over bed: 310 MM
Max. swing over gap: 450 MM
Max. swing over cross slide: 180 MM
Distance between centres: 910 MM
Long. feeds range: 0,0527-1,2912 MM/REV.
Cross feeds range: 0,014-0,3448 MM/REV.
Metric threads range: 32 TIPOS/ 0,4-7 MM
Inch threads range: 36 TIPOS/ 4-60 TPI
Spindle bore: 38 MM
Travel tailstock sleeve: 100 MM
Number of speeds: 18
Taper spindle bore: MT5
Power input: 1,1 KW - 1,5 HP
Spindle speed range: 65-1810 RPM
DRO X-Y: NÃO
Voltage: 400V-F3
