  • BELFLEX Industrial Machine for Metal BF 280/700 VARIO PB38

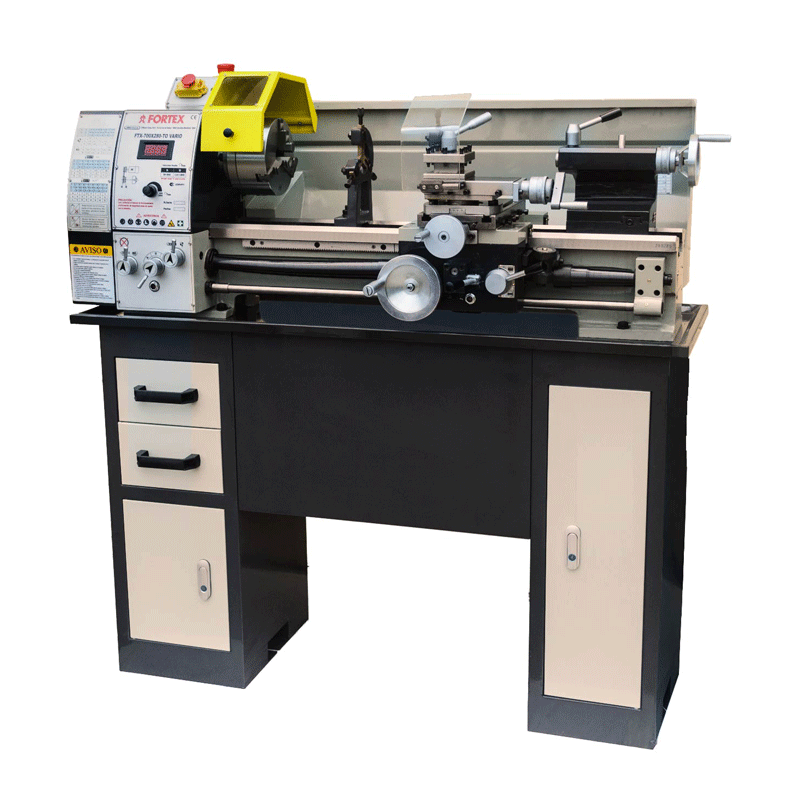

BELFLEX Industrial Machine for Metal BF 280/700 VARIO PB38

Included accessories:
- 3 jaw chuck Ø 160 mm;
- Stand;
- Steady rest;
- Follow rest;
- Back plate;
- Dead center MT3;
- Reducing MT5/MT3;
- Kit of Tools.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Automatic feed and threading are fully interlocked;
- Double V bedway, hardened and ground;
- Precision spindle supported on taper roller bearings;
- Adjustable gibs to slideways;
- Offset facility to tailstock and tailstock quill engraved metric and imperial;
- Separate leadscrew for thread cutting functions;
- Reversible motor;
- Reversible leadscrew for left hand threading;
- Large cross slilde with two full length T slots;
- Chuck guard and cover with microswitch;
- Declaration of conformity and equipmente CE.
AB441105000

Data sheet

Ref
AB441105000
EAN
8423640093324
Brand
BELFLEX
ASIN code
B01KOMZJ4K
Weight
230 KG
Dimensions
1400 X 700 X 680 MM
Speed change
VARIÁVEL
Taper of tailstock sleeve
MT3
Diameter tailstock sleev
30 MM
Max. swing over bed
280 MM
Max. swing over cross slide
165 MM
Distance between centres
700 MM
Long. feeds range
0,07-0,40 MM/REV.
Cross feeds range
0,02-0,28 MM/REV.
Metric threads range
18 TIPOS/ 0,2-3,5 MM
Inch threads range
21 TIPOS / 8-56 TPI
Spindle bore
38 MM
Travel tailstock sleeve
80 MM
Number of speeds
VARIÁVEL
Taper spindle bore
MT5
Power input
1,1 KW - 1,5 HP
Spindle speed range
50-2000 RPM
DRO X-Y
NÃO
Voltage
230V-F1

Specific References

EAN13
8423640093324
