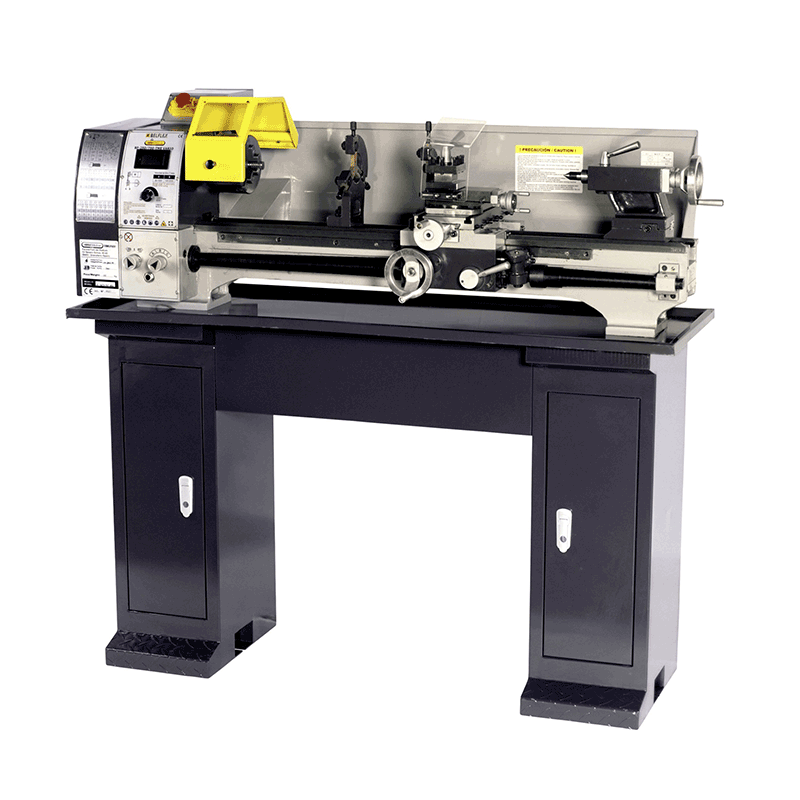

BELFLEX Industrial Machine for Metal BF 250/750 TME VARIO
search
  • BELFLEX Industrial Machine for Metal BF 250/750 TME VARIO

BELFLEX Industrial Machine for Metal BF 250/750 TME VARIO

Included accessories:
- 3 jaw chuck Ø 125 mm;
- Stand;
- Steady rest;
- Follow rest;
- Back plate;
- Dead center MT4;
- Dead center MT2;
- Kit of Tools.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Two speeds bands allow maximum torque in the lower
speeds.
- Double V bedway, hardened and ground.
- Precision spindle supported on taper roller bearings.
- Adjustable gibs to slideways.
- Offset facility to tailstock and tailstock quill engraved metric and imperial.
- Reversible motor.
- Reversible leadscrew for left hand threading.
- Thread dial indicator.
- Chuck guard and cover with microswitch.
- Declaration of conformity and equipment CE.
AB441110000

Data sheet

Ref
AB441110000
EAN
8423640093256
Brand
BELFLEX
ASIN code
B01KOMZGWA
Weight
140 KG
Dimensions
1500 X 560 X 570 MM
Speed change
VARIÁVEL
Taper of tailstock sleeve
MT2
Diameter tailstock sleev
30 MM
Max. swing over bed
250 MM
Max. swing over cross slide
145 MM
Distance between centres
750 MM
Long. feeds range
0,07-0,20 MM/REV.
Metric threads range
18 TIPOS/ 0,2-3,5 MM
Inch threads range
21 TIPOS / 8-56 TPI
Spindle bore
26 MM
Travel tailstock sleeve
70 MM
Number of speeds
VARIÁVEL
Taper spindle bore
MT4
Power input
0,75 KW - 1 HP
Spindle speed range
50-2000 RPM
DRO X-Y
NÃO
Voltage
230V-F1

Specific References

EAN13
8423640093256
