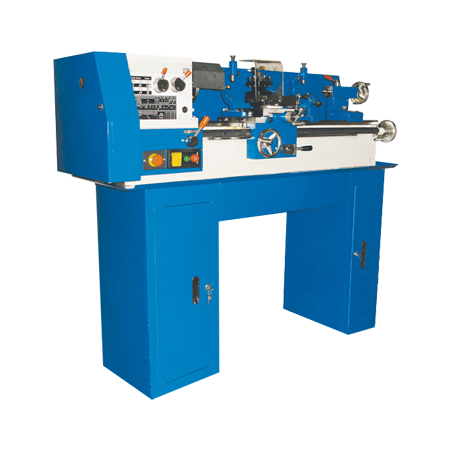

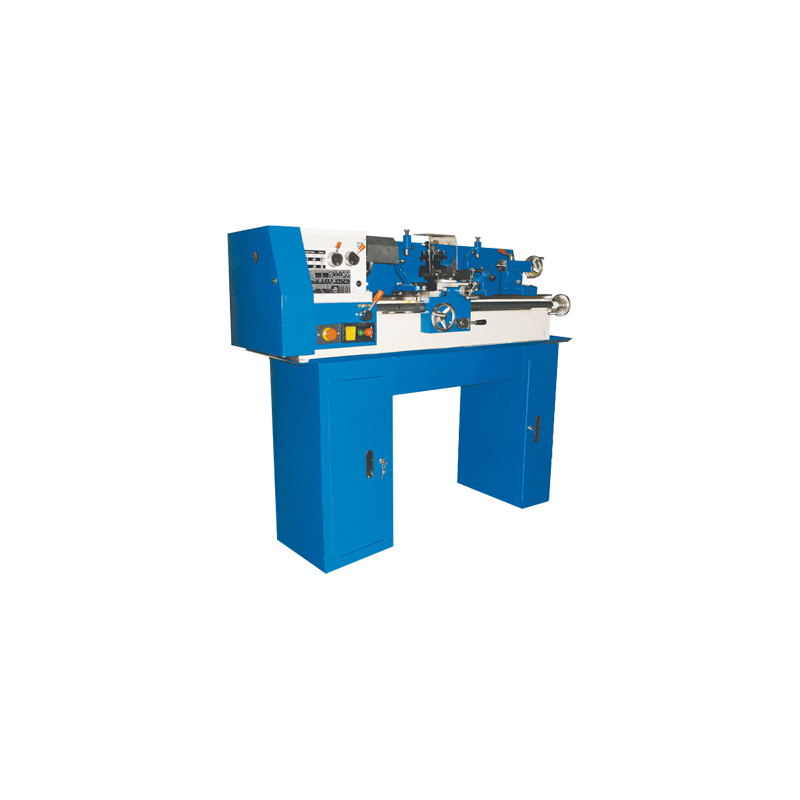

BELFLEX Industrial Machine for Metal BF-700-TME T
search
  • BELFLEX Industrial Machine for Metal BF-700-TME T

BELFLEX Industrial Machine for Metal BF-700-TME T

Included accessories:
- Self-centering 3 jaws Chuck;
- Independent 4 jaws Chuck;
- Chuck Guard in metal with Auto Power-OFF;
- Ø 240 mm Faceplate;
- Steady and Follow Rests;
- MT2 & MT4 Centres;
- Kit of Tools;
- Stand.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- Shaft of guide for automatic feeds;
- Emergency stop switch, tool rest and chuck guards;
- Limit micro-switch in cover and chuck guard;
- Automatic longitudinal travel of carriage;
- Declaration of conformity and equipment CE.
AB441115000

Data sheet

Ref
AB441115000
EAN
8423640400306
Brand
BELFLEX
ASIN code
B01KOMZQO8
Weight
151 KG
Dimensions
1470 X 550 X 410 MM
Speed change
ENGRENAGEM
Taper of tailstock sleeve
MT2
Max. swing over bed
250 MM
Max. swing over cross slide
130 MM
Distance between centres
700 MM
Long. feeds range
0,05-0,1 MM/REV.
Spindle bore
27 MM
Travel tailstock sleeve
70 MM
Number of speeds
6
Taper spindle bore
MT4
Power input
0,55 KW - 0,75 HP
Spindle speed range
115-1620 RPM
Voltage
400V-F3
