  • BELFLEX Industrial Machine for Metal BF 250/550 E

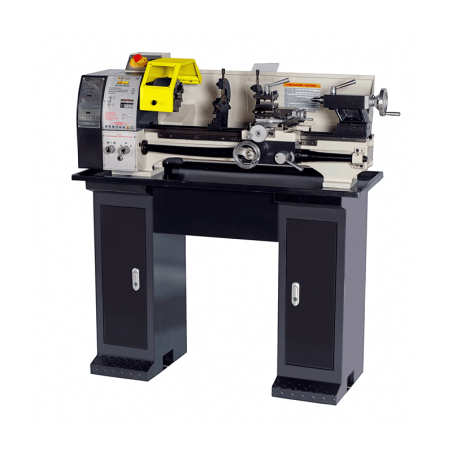

BELFLEX Industrial Machine for Metal BF 250/550 E

Included accessories:
- 3 jaws Chuck Ø125 mm;
- MT2 & MT3 Centres;
- Ø 220 mm Faceplate;
- Steady and Follow Rests;
- Oil Pan and Rear Chip Guard;
- Chuck Guard in metal;
- Stand.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- Shaft of guide for automatic feeds;
- Change of speeds by belt, Emergency stop switch, tool
rest and chuck guards;
- Limit micro-switch in cover and chuck guard;
- Automatic change of threads;
- Declaration of conformity and equipment CE.
AB441180000

Data sheet

Ref
AB441180000
EAN
8423640055056
Brand
BELFLEX
ASIN code
B00SC8O3KU
Weight
130 KG
Dimensions
1155 X 560 X 565 MM
Speed change
CORREIAS
Taper of tailstock sleeve
MT2
Diameter tailstock sleev
30 MM
Max. swing over bed
250 MM
Max. swing over cross slide
145 MM
Distance between centres
550 MM
Long. feeds range
0,07-0,20 MM/REV.
Metric threads range
18 TIPOS / 0,2-3,5 MM
Inch threads range
21 TIPOS / 8-56 TPI
Spindle bore
26 MM
Travel tailstock sleeve
70 MM
Number of speeds
6
Taper spindle bore
MT4
Power input
0,55 KW - 0,75 HP
Spindle speed range
125-2000 RPM
DRO X-Y
NÃO
Voltage
230V-F1

Specific References

EAN13
8423640055056
