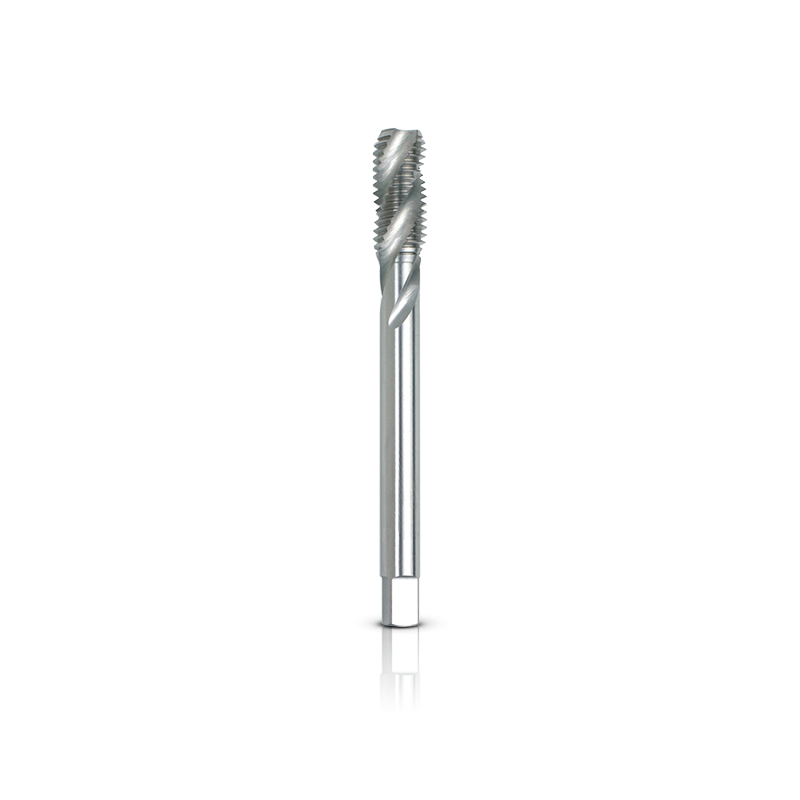

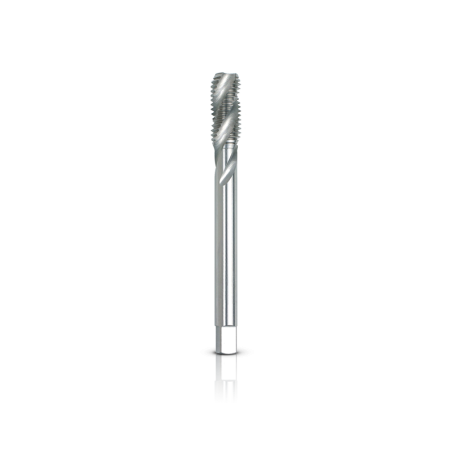

CHEMITOOL CUTTING M16 Machine Tap DIN376 – Type C HSSE Co5

CHEMITOOL high-speed steel machine taps, manufactured in accordance with DIN 376 in form C, are specially intended for demanding work, given their reinforced fit with the aim of providing the user with a good quality product with a constant work output during thethread cutting process.CHEMITOOL C-shaped machine taps require reduced torque, with normal threading pressure, achieving a good surface finish in holes with normal thickness.In the DIN 376 version, it is specially developed for opening threads where there is no exit in the material. This type of threading/drilling is called “blind drilling”.
In HSSE-G M35 5% Co (green ring), it allows its use on steel and nonferrous metals with a hardness of 1000 N/mm2.
The thread pitches of the machine taps comply with tolerance class 6H.Metric machine taps have a square-shaped insert (according to DIN 10), to be firmly held in the power tool adjusted for this purpose, thus preventing springing when torsional forces are being exerted.
