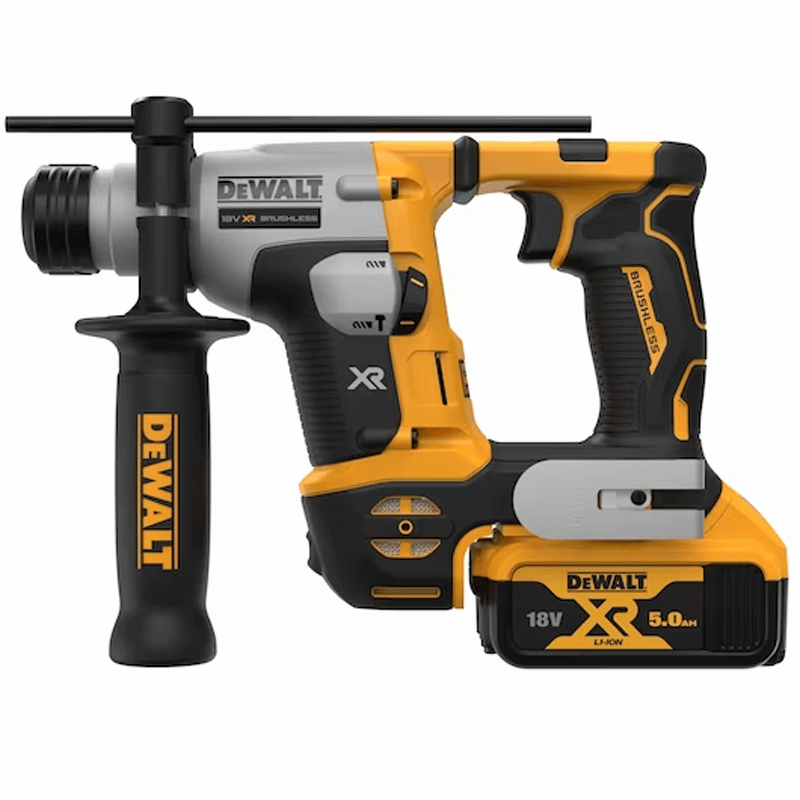

The DCH172 delivers optimised performance and runtime in a lightweight ultra compact body. The powerful brushless motor and XR battery technology deliver 1.4 Joules of impact energy enabling drilling into solid concrete up to 16mm and ideally suited for the installation of plastic plugs and small diameter mechanical anchors, requiring drill diameters in the range of 4 – 10mm.
DCH172P2
Data sheet
Ref
DCH172P2
EAN
5035048741931
Brand
VOLARE
Lenght
283,0 MM
283,0 MM
283,0 MM
283,0 MM
283,0 MM
283,0 MM
Weight
1,8 KG
1,8 KG
1,8 KG
1,8 KG
1,8 KG
1,8 KG
Weight (with battery)
2,4 KG
2,4 KG
2,4 KG
2,4 KG
Width
73 MM
73 MM
73 MM
73 MM
73 MM
73 MM
Battery Type
" LI-ION"
" LI-ION"
" LI-ION"
" LI-ION"
" LI-ION"
Impact energy
1,4 J
No load speed
1060 rpm
Height 1
193 MM
Max. capacity to drill wood
16,0 mm
Uncertainty K3 (vibration)
1,5
1,5
Max. metal punching capacity
10,0 mm
Hand vibration concrete drilli
8,8 m/s²
Max cap. concrete drilling
16,0 mm
Specific References
EAN13
5035048741931
Comments (0)
No customer reviews for the moment.
Your review appreciation cannot be sent
Report comment
Are you sure that you want to report this comment?
Report sent
Your report has been submitted and will be considered by a moderator.
Your report cannot be sent
Write your review
Review sent
Your comment has been submitted and will be available once approved by a moderator.
Your review cannot be sent
-Motor XR 18V with brushless technology provides greater autonomy and durability;
- Ideal for drilling holes in brick and stone, from 4 mm to 16 mm in diameter;
