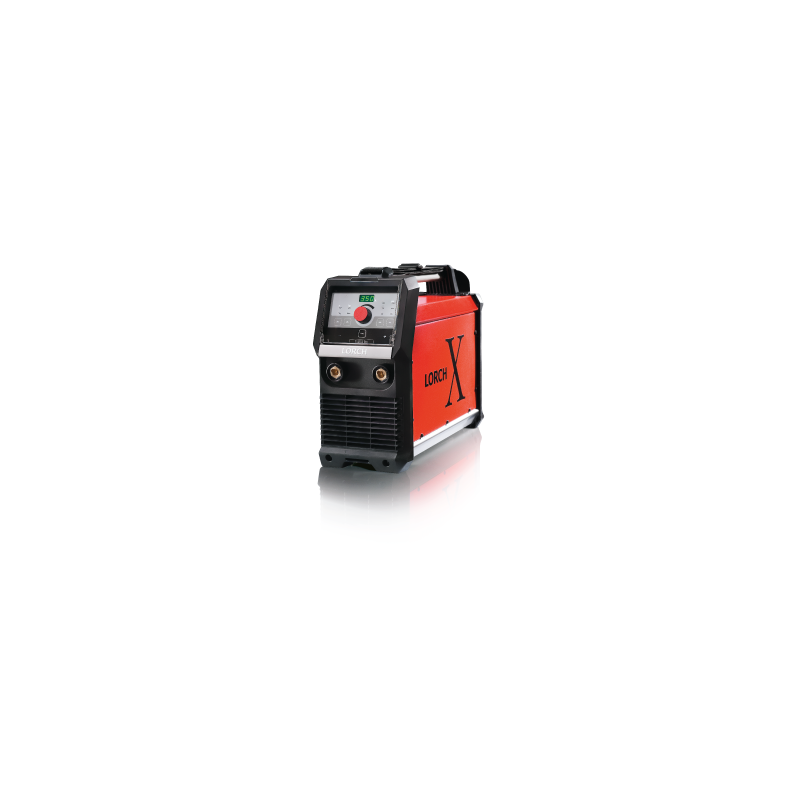

LORCH X350 ControlPro
search
  • LORCH X350 ControlPro

LORCH X350 ControlPro

X 350 ControlProCEL-capable manual metal arc welding inverter with electrode pre-selection, special vertical seam welding function, TIG function, can also be used with semi-automatic MIG-MAG wire feeders.
- MicorBoost Technology;
- Tough housing;
- For basic, rutile, cellulose and special electrodes;
- Hotstart, Anti-Stick and Arc-Force regulation;
- DC-TIG with ContacTIG;
- MicorUp.
ControlPro
- 3 steps to weld operating concept;
- 7-segment display, exact to the amp;
- With electrode pre-selection;
- With optional HotStart activation;
- Including on-demand TIG function;
- Suitable for use with semi-automatic MIG-MAG wire feeder cases;
- With MicorUp function.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

Extended rangeOur MicorBoost technology is responsible for the superior welding characteristics of the Lorch X 350 and guarantees a highly stableand forceful arc even if the machine is operated on cables with a length of up to 200 m.
Multi-talentedThe Lorch X 350 is always the perfect choice when you need to weld with basic, rutile and special electrodes that have a diameter of up to 8 mm or need a tool that can handle vertical down-welding operations with cellulose electrodes (CEL). What is more, ContacTIG allows you to perform TIG welding operations using direct current.
MicorBoost TechnologyPerformance boost thanks to MicorBoost. As soon as the current is reduced due to external disruptions, significantly higher voltagereserves can now be activated. The result is perfect electrode welding – including for CEL and other special electrodes.
Hotstart
Thanks to the adaptive automatic Hotstart feature you can always count on perfect ignition.
Anti-Stick System
The Anti-Stick system prevents the electrode f
LR11635100

Data sheet

Ref
LR11635100
EAN
4032083142342
Brand
LORCH
Voltage setting
INFINITAMENTE VARIÁVEL
Duty cycle for Wigg 100% 40ºC
230 A
Duty cycle for Wigg 60% 40ºC
280 A
Duty cycle max.40ºC (%)
35 %
Protection Class
IP34S
Dimensions
515 C X 185 L X 400 A MM
Welding Range Electrode
10 - 350 A
Phases (50/60 Hz)
3 ~
Mains plug
CEE 32
Fuse
25 A
Designation
CE, S
Insulation class
F
Standards
EN 60974-01
Weight
18,6 / 20,2 KG
Welding electrode
1,5 - 8,0 (CEL 6,0)
Mains voltage
400 V
Permitted mains tolerance
25 % - 40 %

Specific References

EAN13
4032083142342
