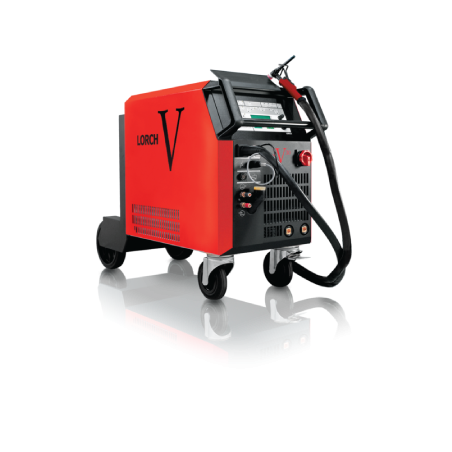

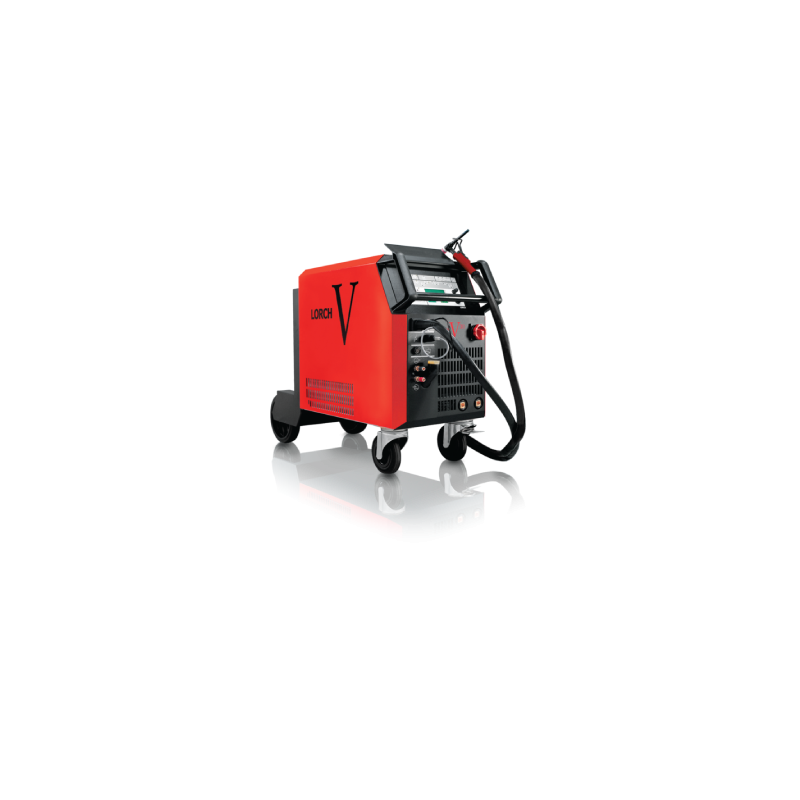

LORCH V30 DC compact system gas-cooled
search
  • LORCH V30 DC compact system gas-cooled

LORCH V30 DC compact system gas-cooled

The digital TIG inverter welding system.
- TipTronic;
- Powerful;
- Pulse and fast pulse up to 20 kHz;
- LorchNet connection;
- Low energy consumption.
Concept
- ”3 steps to weld” operating concept;
- Infinitely variable current setting;
- Can be operated by remote control;
- TipTronic.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

Outstanding TIG welding characteristics thanks to inverter technologyDistinguished by their high efficiency and superb welding characteristics, inverters utilise digital software control technology that has a significant influence on the outcome of the welding process.

In a robust, completely transportable industrial housingThe tough metal housing safely protects the high-end technological innards of your system. Completely transportable at the handles,the machine is also suitable for crane transport.

remote controlWelders often experience that the conditions on site do not allow them to place their welding machine right beside them. When facedwith this type of situation, they find the use of a remote control helpful as it allows them to intervene and adjust the welding current if necessary. This is why Lorch has included a large variety of different hand and foot remote controls in their V series, which are ready for use right away thanks to their plug&play support.

LorchNET connection
All machines
LR25730010

Data sheet

Ref
LR25730010
EAN
4032083122290
Brand
LORCH
Voltage setting
CONTÍNUO
Duty cycle max.40ºC (%)
60 %
Protection Class
IP23S
Dimensions
1130 X 450 X 815 MM
Welding Range Electrode
20- 250
Welding range TIG
3 - 300 A
Phases (50/60 Hz)
3 ~
Mains plug
CEE 32
Fuse
32 A
Designation
CE, S
Insulation class
F
Standards
EN 60974-01
Weight
86,4 KG / 93,6 KG
Mains voltage
400 V
Permitted mains tolerance
15 % - 15 %
Weight, water cooling
14,7 KG
TIG duty cycle 100%-60%
300 - 250 A

Specific References

EAN13
4032083122290
