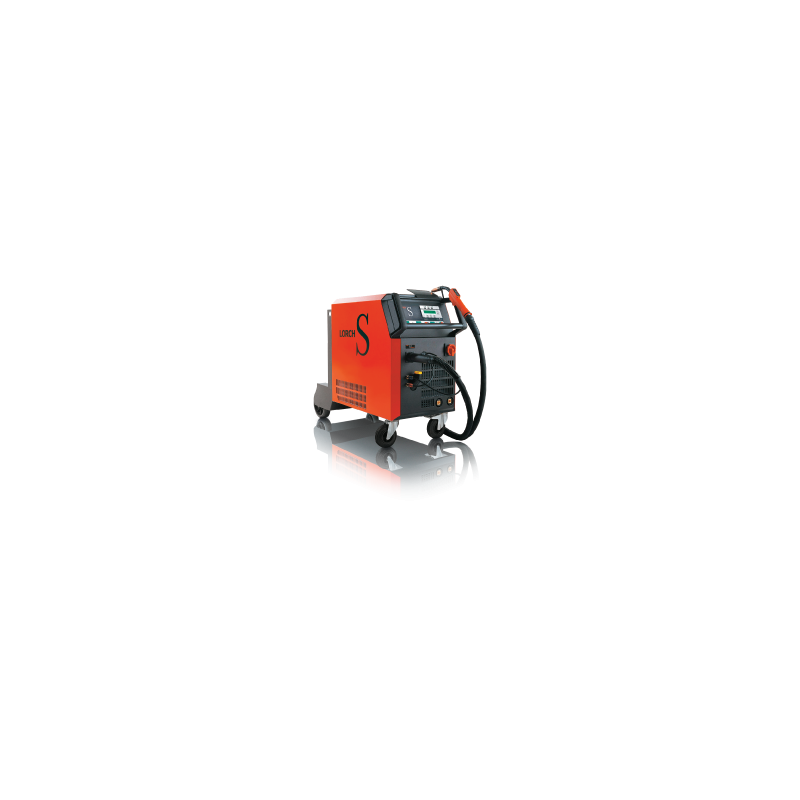

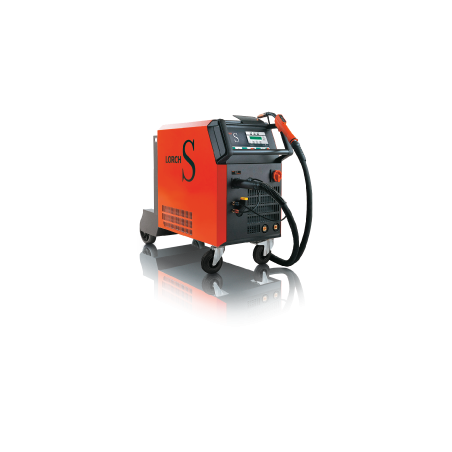

LORCH S8 SpeedPulse XT configurable

S8 SpeedPulse XT
With SpeedPulse XT: extra robust, extra variable, extra low-spatter.
- Dynamic control;
- Variable arc length control;
- Ready for Speed XT:
- EN 1090-certified;
- Pulse welding machine;
- Powerful.
Concept
- ”3 steps to weld” operating concept;
- Synergic control;
- Display-controlled user prompting;
- Straightforward process and synergic line selection;
- Quatromatic mode;
- Dynamic control (for Synergic, SpeedArc XT, and, if included, for SpeedPulse XT);
- Tiptronic job memory (100 welding tasks);
- Volt-ampere meter;
- Possibility for connection of the Powermaster;
- Remote control torch.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

Ready for Speed XTYou can now finish your welding jobs even faster by taking advantage of Lorch's optional speed upgrades SpeedRoot, SpeedUp and SpeedCold as well as of the standard options SpeedPulse, SpeedPulse XT, SpeedTwinPuls, TwinPuls XT, SpeedArc and SpeedArc XT.

Dynamic controlDynamic control allows the welder, for the first time, to variably adjust a pulse welding machine to a wide range of jobs and welding positions as well as to his personal preferences. The welder can use a controller to directly access the arc characteristic and change it from soft to hard.

PowerfulThe 300 to 500 ampere models included in Lorch's S SpeedPulse XT-series are powerful enough to weld materials of all levels of thickness.

Ready for PulseHighly developed processor technology provides for the seamless interaction of all parameters and components involved in the welding process. The results of this smooth interaction are superior duty cycle levels and maximum productivity.

Versatility
Operating equally well w
LR21280079

Data sheet

Ref
LR21280079
EAN
4032083143769
Brand
LORCH
Voltage setting
INFINITAMENTE VARIÁVEL
Duty cycle for Wigg 100% 40ºC
400 A
Duty cycle for Wigg 60% 40ºC
500 A
Duty cycle max.40ºC (%)
60 %
Protection Class
IP23S
Dimensions
-
Phases (50/60 Hz)
3 ~
Mains plug
CEE 32
Fuse
35 A
Designation
CE, S
Insulation class
F
Standards
EN 60974 - 01
Weight
-
Mains voltage
400 V
Permitted mains tolerance
15% - 15%
Wire feed unit
4 ROLOS 2 ACIONÁVEIS
Welding range
25 - 500 A
Weldable wires steel
0,6 - 1,6 MM
Wedable wires aluminium
1,0 - 2,4 MM
Dimensions A version
1116 X 463 X 812
Dimensions B version
1116 X 45 X 855
Weight wire feed case
20,2 KG
Weight, water cooling
14,7 KG
Weight power source A version
100,7 KG

Specific References

EAN13
4032083143769
