MEGA Hydraulic Cylinder Hollow Piston with Simple-Acting CSH-30 30t
search
  • MEGA Hydraulic Cylinder Hollow Piston with Simple-Acting CSH-30 30t

MEGA Hydraulic Cylinder Hollow Piston with Simple-Acting CSH-30 30t

- Working pressure: 700 kg/cm2/10.000 psi;
- The hollow cylinders can be used for general applications of pushing or lifting forces.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;
- The hollow cylinders can be used for general applications of pushing or lifting forces;

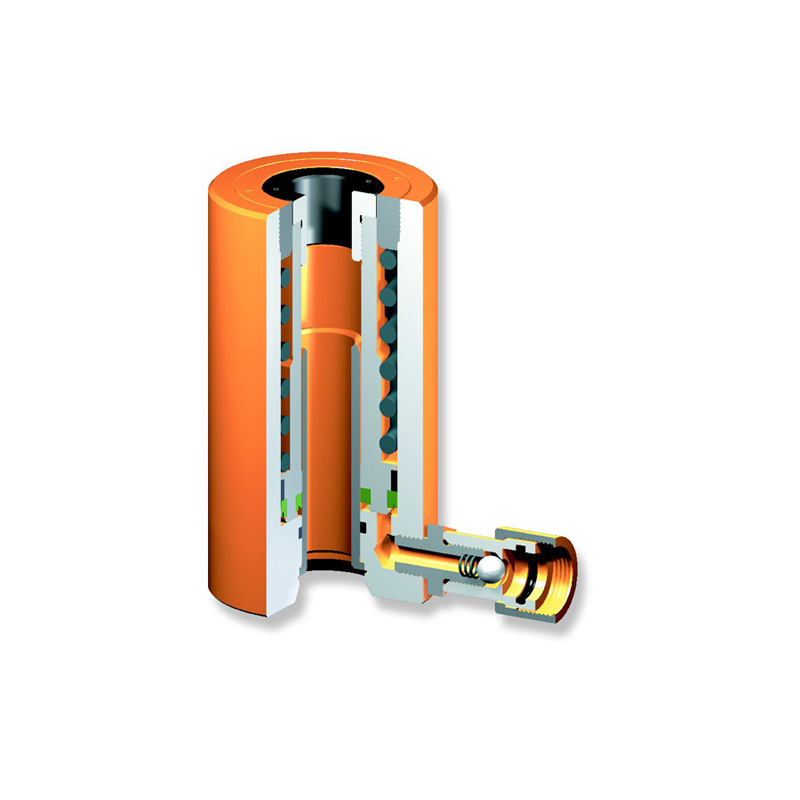

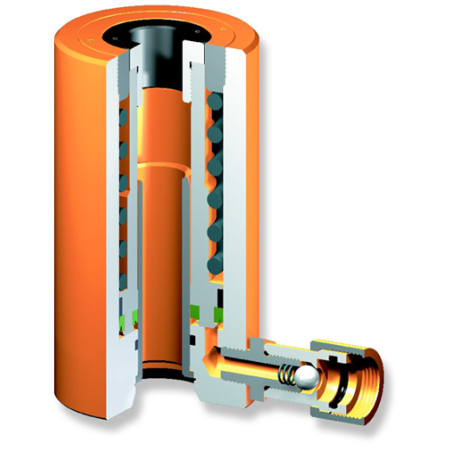

- Additionally, they feature a centre-hole piston which allows the insertion of a rod or screw, attachable to the threaded saddle, that travels through the cylinder for pulling or pushing operations;
- Ideal for tensioning, extracting, gear and pin removal etc.
CSH-30

Data sheet

Ref
CSH-30
EAN
5608907326268
Brand
MEGA
Color
GREY
Minimum height
321 MM
Oil capacity
270 CM³
Rated Capacity
30 T
Stroke
63 MM
Weight
13 KG
Effective Area
42,51 CM²

Specific References

EAN13
5608907326268
