MEGA Hydraulic Cylinder General Purpose Single Acting Spring Return CSRA-23F 375 mm

- Working pressure: 700 kg/cm2/10.000 psi;
- With a removable grooved saddle, pressure mounted or screwed in the piston head.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;

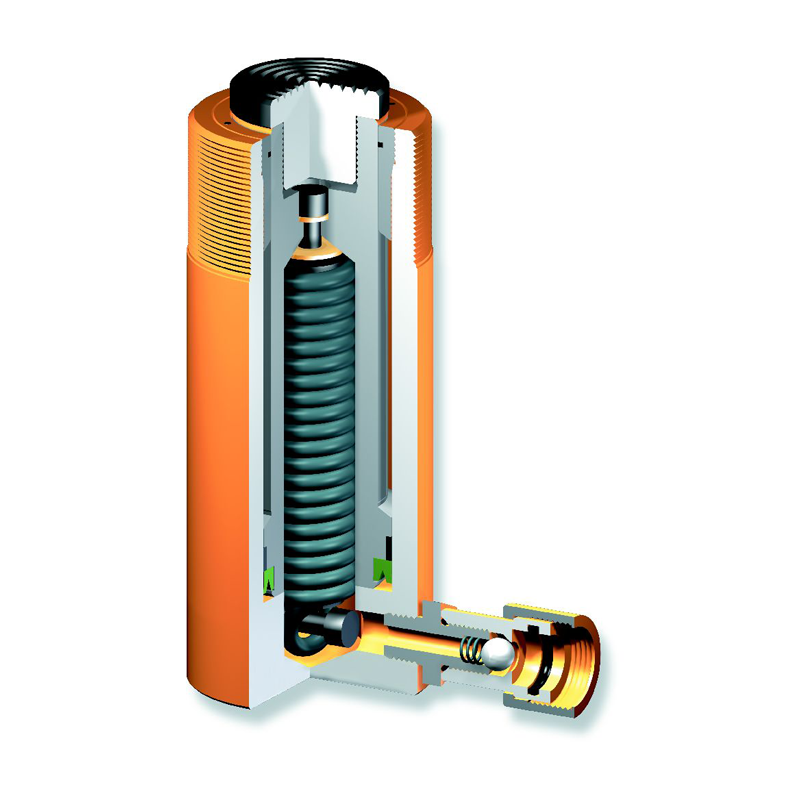

- This piston has a salt bath nitriding treatment or a hard chrome plating, depending on the model, to resist corrosion and for longer life.With built-in bronze guide for easier sliding of piston;
- This cylinder is fitted with a removable grooved saddle, pressure mounted or screwed in the piston head;
- They are also equipped with a high flow female quick coupler with dust cap, ref. A-5507-H.
CSRA-23F

Data sheet

Ref
CSRA-23F
EAN
5608907326459
Brand
MEGA
Color
GREY
Minimum height
324 MM
Oil capacity
830 CM³
Rated Capacity
23 T
Stroke
250 MM
Weight
15,5 KG
Effective Area
33,08 CM²

Specific References

EAN13
5608907326459
