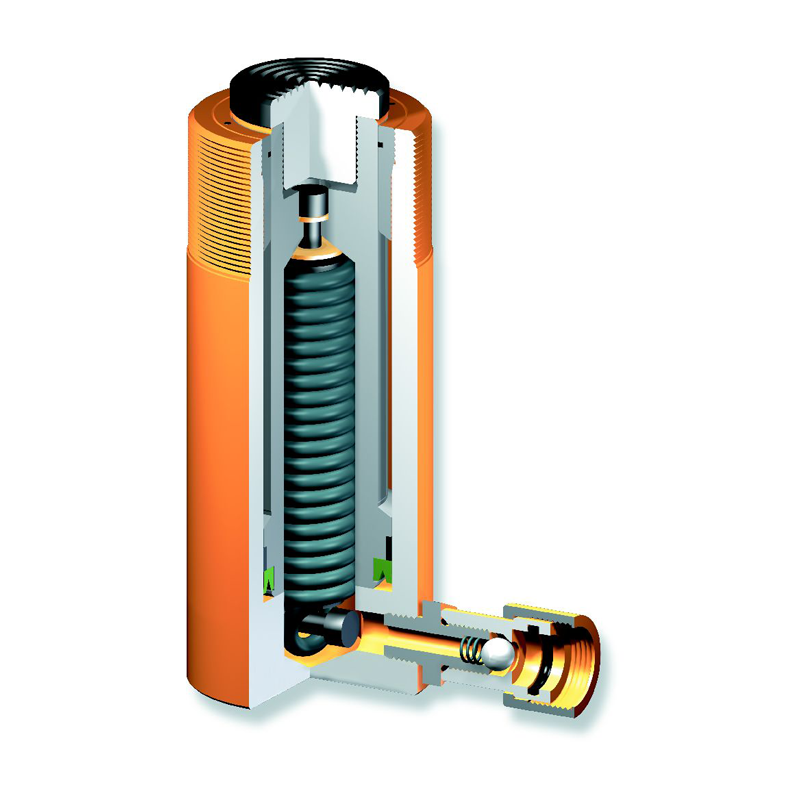

MEGA Hydraulic Cylinder General Purpose Single Acting Spring Return CSRA-93B 190 mm
search
  • MEGA Hydraulic Cylinder General Purpose Single Acting Spring Return CSRA-93B 190 mm

MEGA Hydraulic Cylinder General Purpose Single Acting Spring Return CSRA-93B 190 mm

- Working pressure: 700 kg/cm2/10.000 psi;
- With a removable grooved saddle, pressure mounted or screwed in the piston head;
- With carrying handle.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;
- This piston has a salt bath nitriding treatment or a hard chrome plating, depending on the model, to resist corrosion and for longer life.With built-in bronze guide for easier sliding of piston;
- This cylinder is fitted with a removable grooved saddle, pressure mounted or screwed in the piston head;
- They are also equipped with a high flow female quick coupler with dust cap, ref. A-5507-H;
- With carrying handle.
CSRA-93B

Data sheet

Ref
CSRA-93B
EAN
5608907326565
Brand
MEGA
Color
GREY
Minimum height
324 MM
Oil capacity
664 CM³
Rated Capacity
93 T
Stroke
50 MM
Weight
32,3 KG
Effective Area
132,73 CM²

Specific References

EAN13
5608907326565
