  • MEGA Hydraulic Jack Trolley - N Line 30t

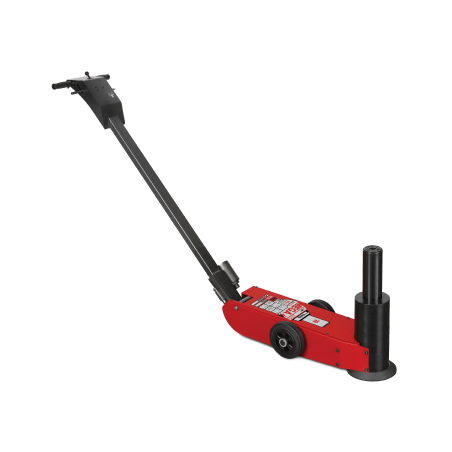

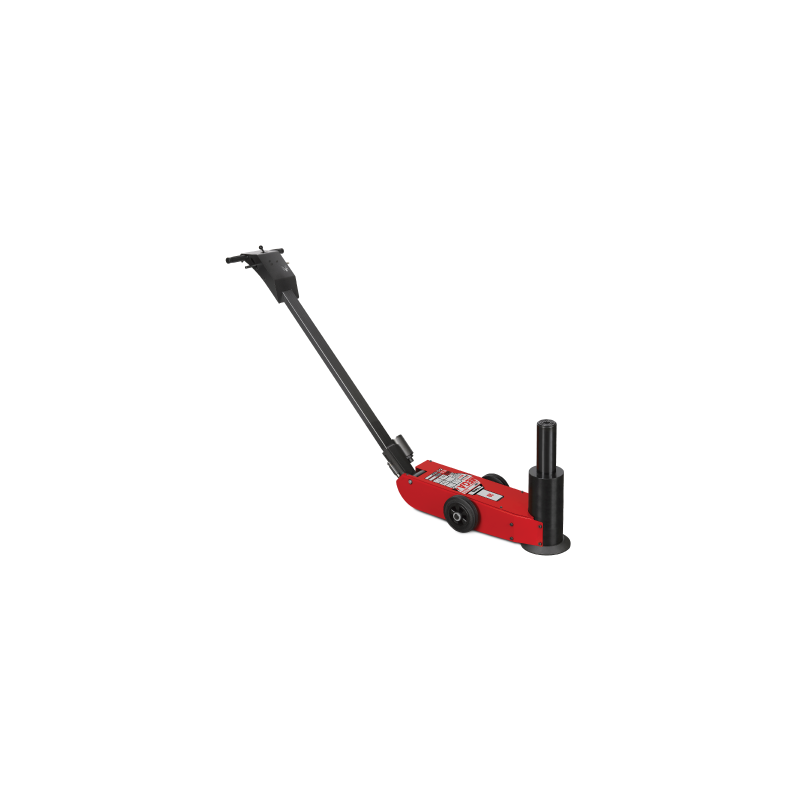

MEGA Hydraulic Jack Trolley - N Line 30t

- Overload safety valve;
- Control drop control device;
- Hydraulic travel limiter;
- Operation by principle dead man.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- High approach speed and efficient load elevation. The operator will always be in control of the operation even if the air supply is interrupted. Self-retracting ram descent eliminates manual lowering;
- Maximun steel quality. Their chromiun molybdenum vanadium composition strengthened by an anti-rust and anti-seizing treatment through salt bath nitriding gives the jacks unbeatable resistance and durability properties;
- Modular concept. The independent modular construction design-lifting block, valve unit, pump motor, release cylinder and tank -simplifies assembly and makes maintenance easier;
- For an optimal use of the jacks a working pressure of between 6 and 8 bars is recommended.
N30H

Data sheet

Ref
N30H
EAN
5601866869296
Brand
MEGA
Color
RED
Force
30 T
Weight
78 KG
Maximum elevatiion height
250 MM
Minimum height of the head
360 MM

Specific References

EAN13
5601866869296
