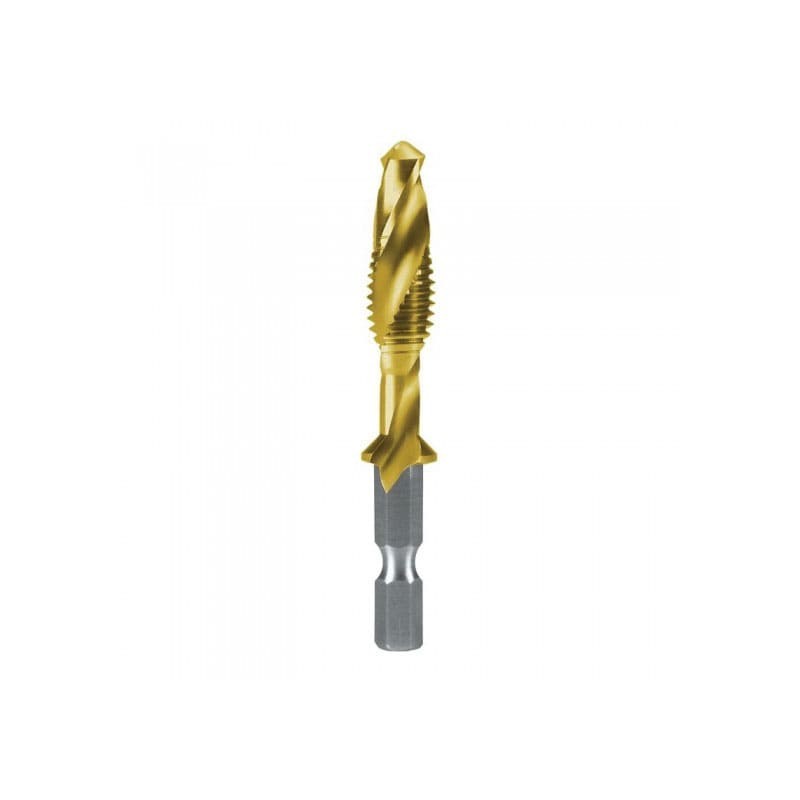

RUKO Male To Open Combined-Bit Threads 'Long' HSS-TiN, Rectified (M4)

- Main application Steel (N / mm²) <800, steel (N / mm²) <1000, steel (N / mm²) <1200, stainless steel and brass

- Secondary application Aluminum, bronze, plastics, cast iron and titanium alloy
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Screwdriver male combined with ¼ hexagon rod for through holes and threads.
- Flanks: with posterior grinding
- Rod: 6.35 x 27.0 mm
- The thread opening machine male is ideal for working with sheet metal drilling machines with spinning or counterclockwise rotation.
- The thread is opened in a single phase of operation without tool change.
- The thread comes with a helical drill bit.

HSS-TiN
- Areas of use: alloyed and unalloyed steel up to 1000 N / mm² strength, malleable cast iron and non-ferrous metals.

IN AN OPERATION PHASE
- drilling with auger
- thread opening
- thread countersinking
- Thread cleaning (when backing up)
R270015T

Data sheet

Ref
R270015T
EAN
4007140108449
Brand
RUKO
Diameter
3,3 MM
Lenght
39,0 MM
Drilling depth
6,0 MM
ASIN code
B00Q4N95G2
Useful length
8,0 MM
Screw thread
M4
Diameter 2
7,2 MM
Gradient
0,70 MM

Specific References

EAN13
4007140108449
