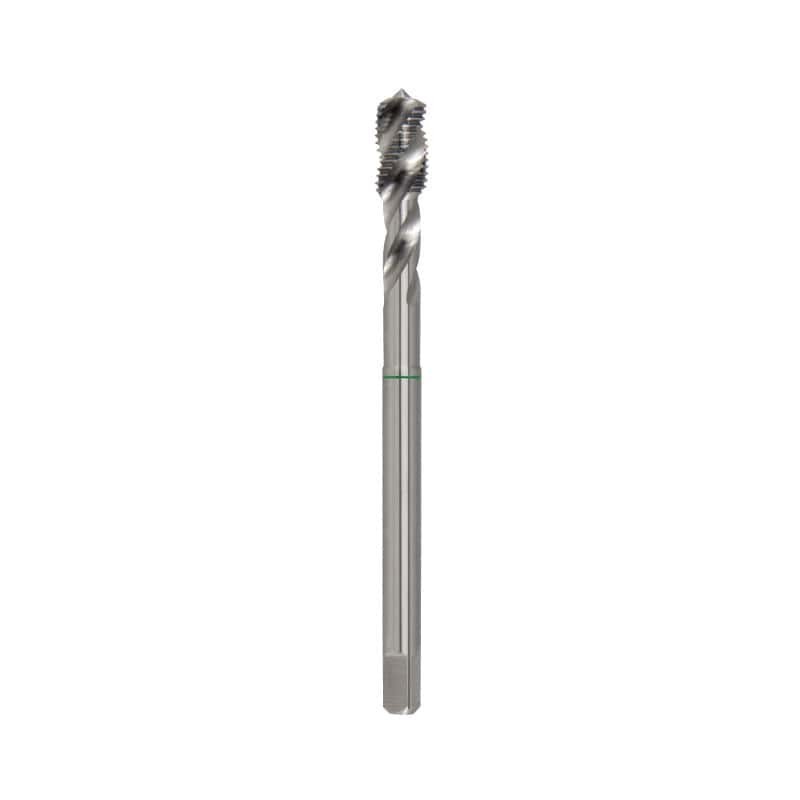

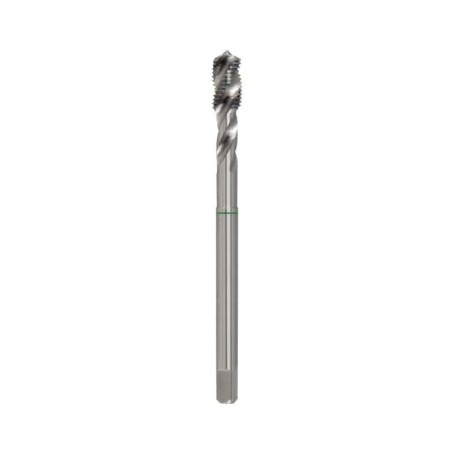

RUKO Male Thread Machine With Passageshaft, For Threads Of Passage DIN 2183 HSSE-Co5 (Nr. 7/16, L2 17,0mm)
search
  • RUKO Male Thread Machine With Passageshaft, For Threads Of Passage DIN 2183 HSSE-Co5 (Nr. 7/16, L2 17,0mm)

RUKO Male Thread Machine With Passageshaft, For Threads Of Passage DIN 2183 HSSE-Co5 (Nr. 7/16, L2 17,0mm)

- Main application Steel (N / mm²) <800, steel (N / mm²) <1000, stainless steel and brass

- Secondary application Aluminum, bronze, plastics and cast iron
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Threads: Thick UNC american thread
- Flanks: with posterior grinding
R266716UNC

Data sheet

Ref
R266716UNC
EAN
4007140099556
Diameter
9,3 MM
Lenght
100,0 MM
ASIN code
B00GTOYPMK
Useful length
17,0 MM
Size
NR. 7/16
Diameter 2
8,0 MM
Gradient
14 MM

Specific References

EAN13
4007140099556
