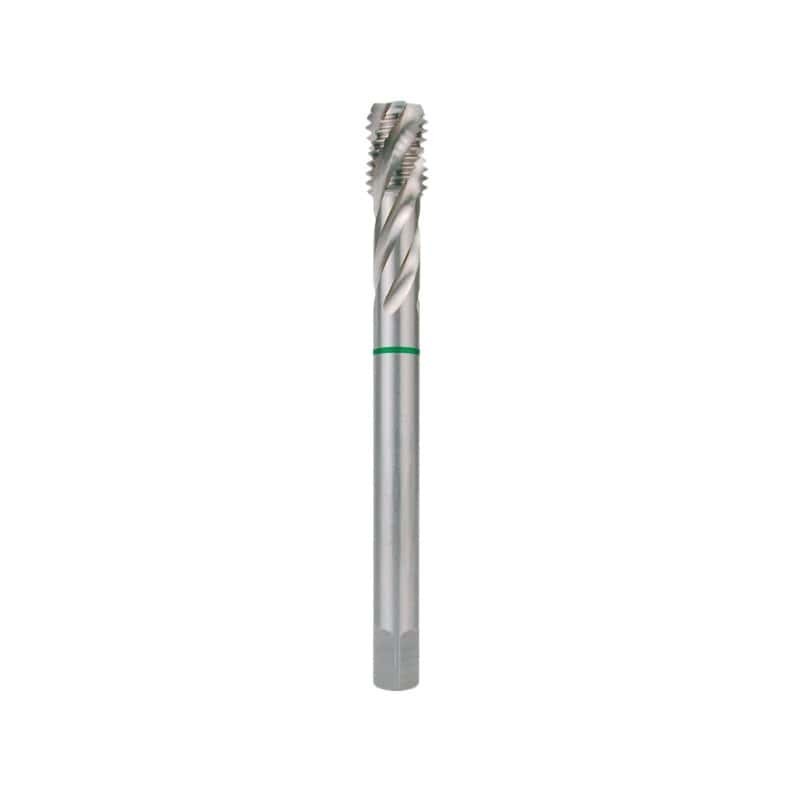

RUKO Male Thread Machine M DIN 376 HSSE-Co5, Rectified (M14, L2 20,00mm)
search
  • RUKO Male Thread Machine M DIN 376 HSSE-Co5, Rectified (M14, L2 20,00mm)

RUKO Male Thread Machine M DIN 376 HSSE-Co5, Rectified (M14, L2 20,00mm)

- Main application Steel (N / mm²) <800, steel (N / mm²) <1000, stainless steel, brass

- Secondary application Aluminum, bronze, plastics and cast iron
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Screwdriver male with passing rod and helical milling cutters on the right 35 ° RSP for threads for blind holes.
- Vertex: mold C / 35 ° RSP of 2 - 3 phases
- Threads: metric DIN ISO 13
- Flanks: with posterior grinding
R233140E

Data sheet

Ref
R233140E
EAN
4007140058751
Diameter
12,0 MM
Lenght
110,0 MM
ASIN code
B005DKORX8
Useful length
20,0 MM
Size
M14
Diameter 2
11,0 MM
Gradient
2,00 MM

Specific References

EAN13
4007140058751
