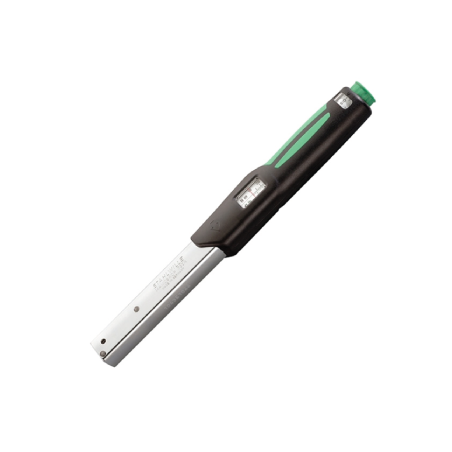

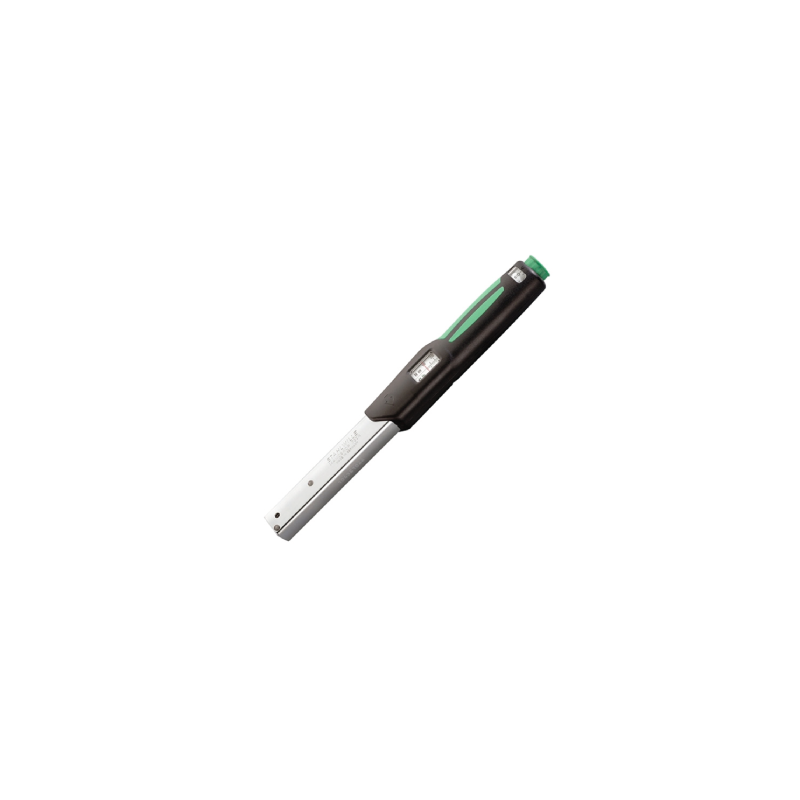

STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 65
search
  • STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 65

STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 65

Recommended ratchet insert tool nº 735/40HD.
  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Click-type;
- Mount for interchangeable insert tools;
- QuickRelease safety lock;
- Fast, accurate setting thanks to QuickSelect quick-action adjuster;
- Dual stop signal;
- Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales;
- The measuring element is only under load while force is being applied, no need for manual reset to zero;
- Can be applied for either clockwise or anticlockwise tightening by turning the inserts over;
- Any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it;
- Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol);
- Calibration using perfectControl calibrating unit nº 7794 or calibration system No 7706. Adjustment without disassembly;
- With certificate;
- Registered design;
- Display deviatio
S50181065

Data sheet

Ref
S50181065
EAN
4018754163991
Brand
STAHLWILLE
Total length
890 MM
Weight
3231 G
Type
MANOSKOP® 730N
Height
25,6 MM
Diameter
30,6 MM
Size
65
Torque range
130 - 650 N·M
Scale division
50 N·M
Fitting size
14 X 18 MM

Specific References

EAN13
4018754163991
