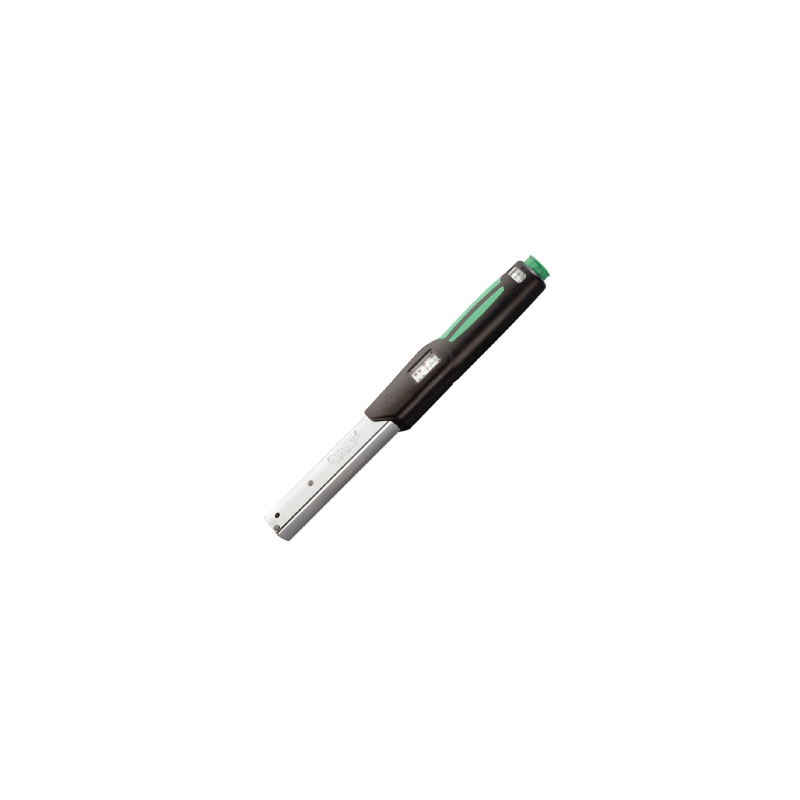

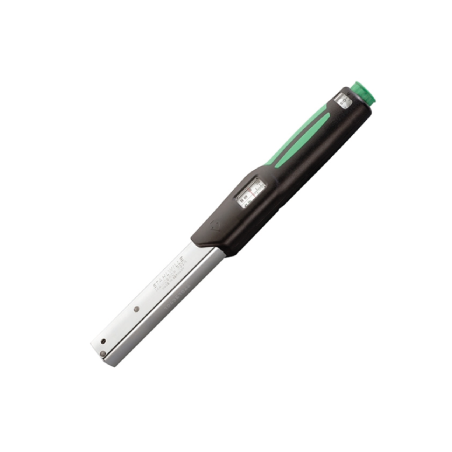

STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 20
search
  • STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 20

STAHLWILLE Service MANOSKOP® 730N Torque Wrenche with Mount for Insert Tools Size 20

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Click-type;
- Mount for interchangeable insert tools;
- QuickRelease safety lock;
- Fast, accurate setting thanks to QuickSelect quick-action adjuster;
- Dual stop signal;
- Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales;
- The measuring element is only under load while force is being applied, no need for manual reset to zero;
- Can be applied for either clockwise or anticlockwise tightening by turning the inserts over;
- Any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it;
- Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol);
- Calibration using perfectControl calibrating unit nº 7794 or calibration system No 7706. Adjustment without disassembly;
- With certificate;
- Registered design;
- Display deviatio
S50181020

Data sheet

Ref
S50181020
EAN
4018754139545
Brand
STAHLWILLE
Total length
467 MM
Weight
1264 G
Type
MANOSKOP® 730N
Height
23 MM
Diameter
28 MM
Size
20
Torque range
40 - 200 N·M
Scale division
10 N·M
Fitting size
14 X 18 MM

Specific References

EAN13
4018754139545
