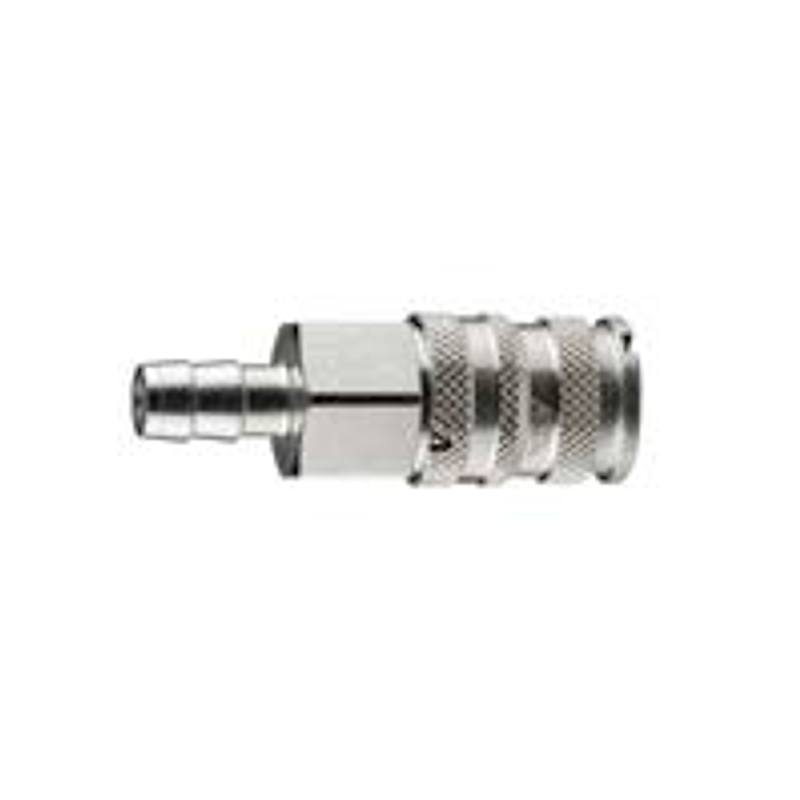

ANi Large Size Quick Coupler With Tailpiece 90/R4 ø 19 mm

Large size quick coupler with part for placement.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Large size zinc-plated steel bearing-type quick coupler with safety release system;

- Safety release system;

- Zinc-plated steel sleeve and body; COMPATIBILITY: Atlas Copco QIC 15 SE, ErgoQIC 15E- CEJN 410- LEGRIS 27 PARKER 55- RECTUS 27- TEMA 1700; FIELDS OF APPLICATION: Pneumatic circuits; OPERATING PRESSURE: 0 ÷ 16 bar (232 psi); OPERATING TEMPERATURE: -15°C (258°K) ÷ +80°C (353°K); NOMINAL DIAMETER: 10.5 mm; AIRFLOW at 6 bar: 4000 l/min (141.3cfm); MATERIALS USED: Zinc-plated steel (11SmnPb37 UNI EN 10277-3), Nickel-plated brass (UNI EN 12164 CW 614N); O-RINGS/WASHERS: NBR rubber washers; THREAD: Gas conical thread (BSPT)- DIN 2999- BS 21), Cylindrical gas thread- ISO 228 (BSPP).

AH022473

Scheda tecnica

Ref
AH022473
EAN
8022219407687
Marca
ANI

Riferimenti Specifici

ean13
8022219407687
