  • ANi Male Threaded Straight Connector For Nylon Hoses 40/A M 1/2M ø 12 x 10 mm

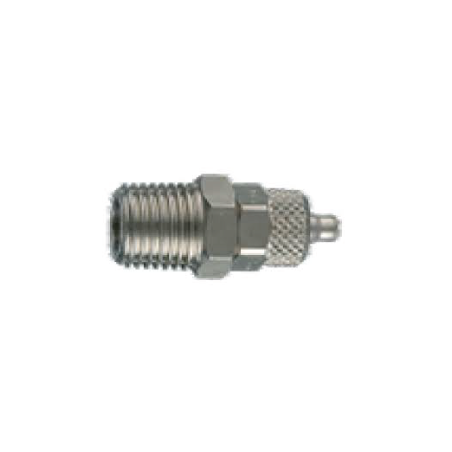

ANi Male Threaded Straight Connector For Nylon Hoses 40/A M 1/2M ø 12 x 10 mm

- Conical male thread ISO 7 (BSPT) - DIN 2999 - BS 21.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Fields of application: Pneumatic, oleodynamic and hydraulic circuits;

- Operating pressure: The maximum operating pressure depends on the pipe characteristics. Maximum pressure 16 bar (1;6 MPa);

- Operating temperature: -10°C (263°K) ÷+80°C (353°K);

- Pipes to be connected: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0,05 (ø 4÷ø10) - ±0,1 (ø12 ÷ ø 14);

- Materials used: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMA-15 (UNI EN 1774:99);

- Thread: Gas conical thread with PTFE ISO 7 (BSPT) - DIN 2999 - BS 21; Cylindrical gas thread - ISO 228 (BSPP);

- The products comply with the 2002/95/EG – RoHS directive.

AH032705

Scheda tecnica

Ref
AH032705
EAN
8022219003308
Marca
ANI
Peso
47 G
Encabadouro
1/2M
Diâmetro
12 X 10 MM
Altura da rosca
14 MM

Riferimenti Specifici

ean13
8022219003308
