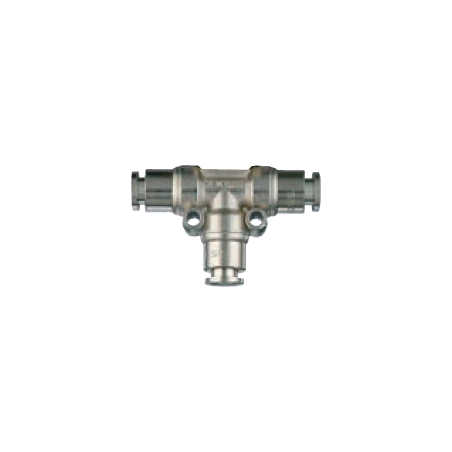

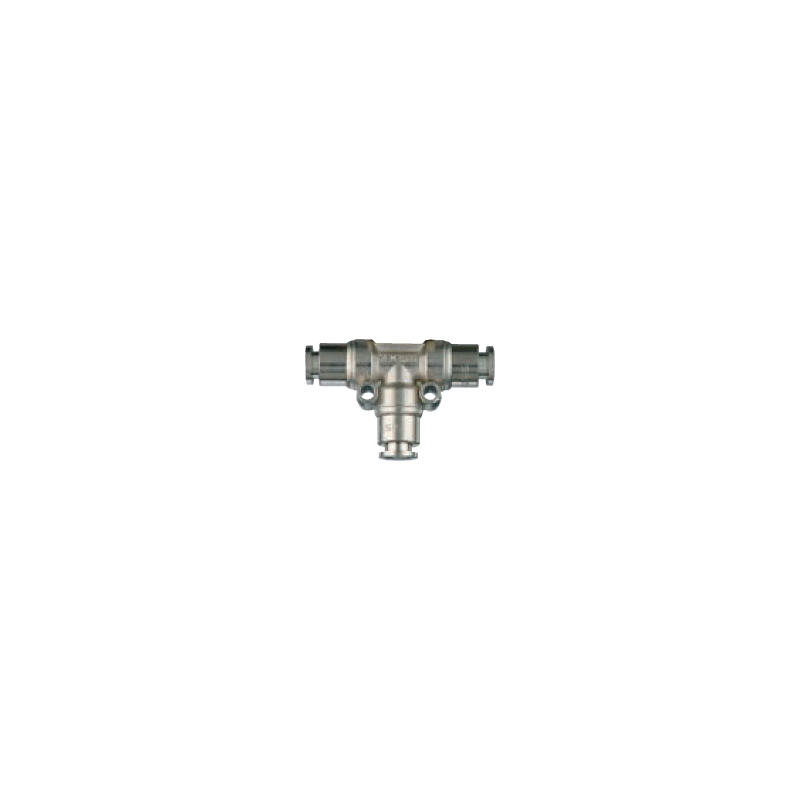

ANi Tee Fitting 50/DI ø 6 mm

- Metal push in fittings

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

FIELDS OF APPLICATION: Pneumatic circuits; OPERATING PRESSURE:

- The maximum operating pressure depends on the pipe characteristics;

- Maximum pressure 16 bar (1.6 MPa); OPERATING TEMPERATURE: -10°C (263°K) ÷ +80°C (353°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) ±0,05 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 14); MATERIALS USED: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMAK-15 (UNI EN 1774: 99); O-RINGS/WASHERS: Oil-resistant, silicone-free NBR washers; THREAD:

- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;

- Cylindrical gas THREAD: - ISO 228 (BSPP); The products comply with the 2002/95/EG – RoHS directive.

AH033202

Scheda tecnica

Ref
AH033202
EAN
8022219250375
Marca
ANI
Código ASIN
B06Y38D6MV

Riferimenti Specifici

ean13
8022219250375
