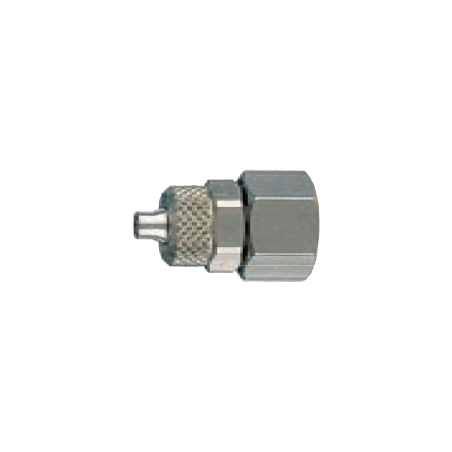

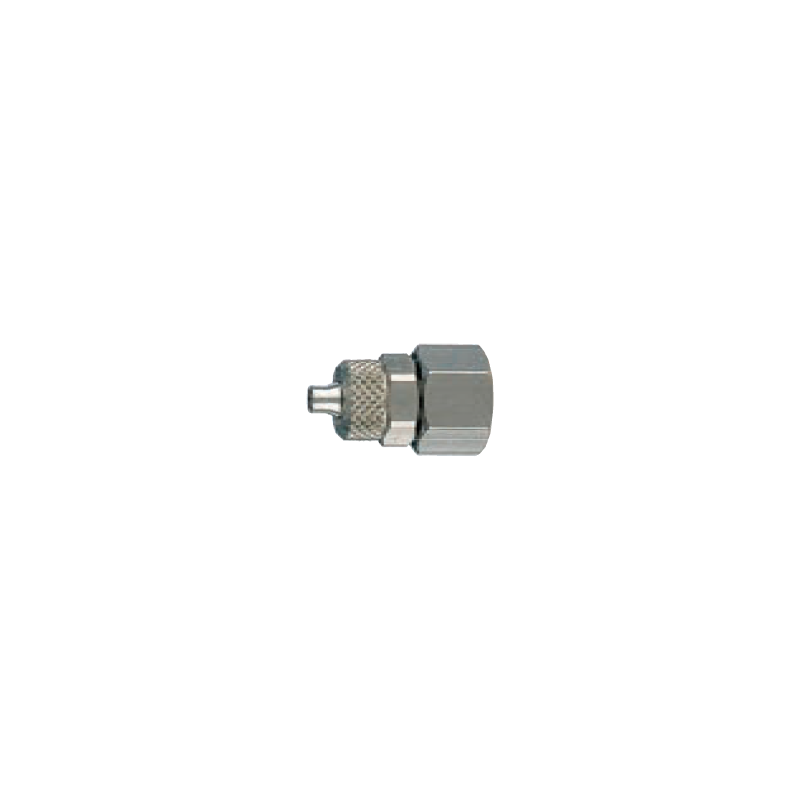

ANi Female Threaded Straight Adaptor 1/4M ø 8 x 6 mm
search
  • ANi Female Threaded Straight Adaptor 1/4M ø 8 x 6 mm

ANi Female Threaded Straight Adaptor 1/4M ø 8 x 6 mm

- Cylindrical female thread - ISO 228 (BSPP).

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Fields of application: Pneumatic, oleodynamic and hydraulic circuits;

- Operating pressure: The maximum operating pressure depends on the pipe characteristics. Maximum pressure 16 bar (1;6 MPa);

- Operating temperature: -10°C (263°K) ÷+80°C (353°K);

- Pipes to be connected: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0,05 (ø 4÷ø10) - ±0,1 (ø12 ÷ ø 14);

- Materials used: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMA-15 (UNI EN 1774:99);

- Thread: Gas conical thread with PTFE ISO 7 (BSPT) - DIN 2999 - BS 21; Cylindrical gas thread - ISO 228 (BSPP);

- The products comply with the 2002/95/EG – RoHS directive.

AH036302

Scheda tecnica

Ref
AH036302
EAN
8022219004466
Marca
ANI
Peso
23 G
Encabadouro
1/4M
Diâmetro
8 X 6 MM
Altura da rosca
11 MM

Riferimenti Specifici

ean13
8022219004466
