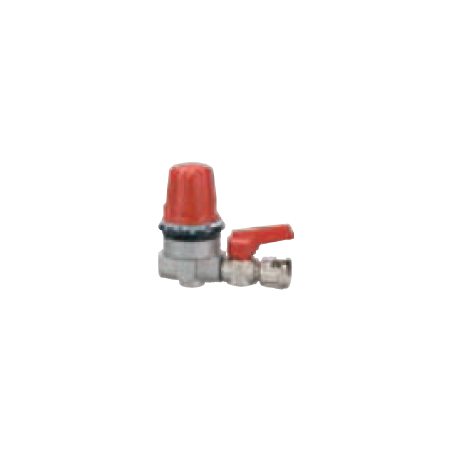

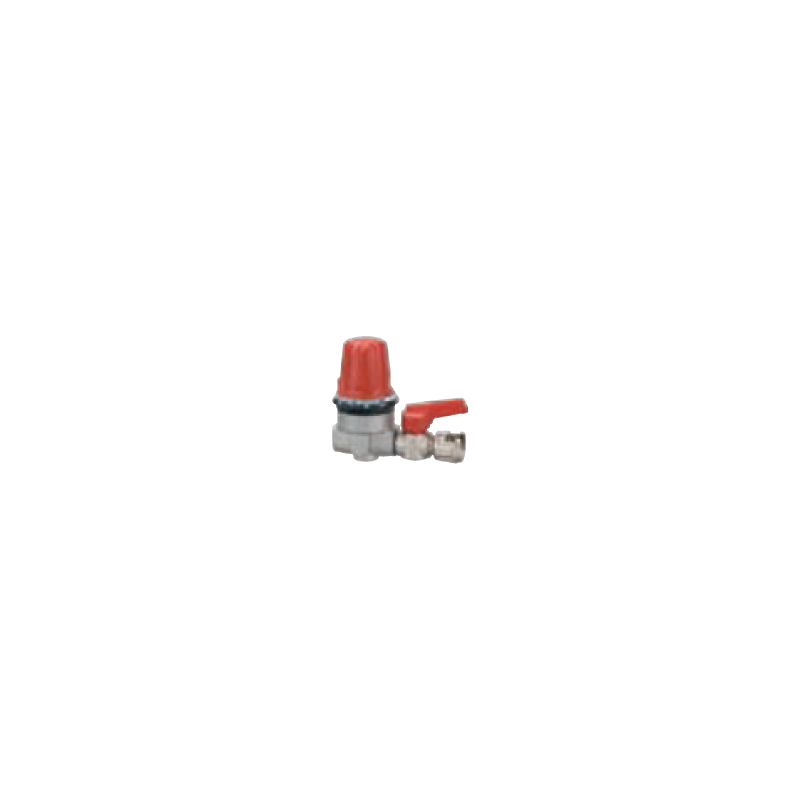

ANi Dial Red Regulator - 31/S4 1/4F 1/4' BSP

- Pressure regulator with graduated scale 1-9 bar ÷ 20-130 psi;

- Line tap (mod. 31/S4- AIR 11);

- Piston-type pressure regulation system;

- Regulation knob with locking device and threaded fastening ring in engineering polymer;

- Pressure release valve for overpressure and relieving function supplied as standard.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Pressure regulator with graduated scale 1-9 bar ÷ 20-130 psi;

- Line tap (mod. 31/S4- AIR 11);

- Piston-type pressure regulation system;

- Regulation knob with locking device and threaded fastening ring in engineering polymer;

- Pressure release valve for overpressure and relieving function supplied as standard. FIELDS OF APPLICATION: Compressed air; MATERIALS USED:

- Body: Sandblasted aluminium (GZn Al4 Cu1 UNI EN 1774);

- Knob/Ring/Piston/Valve: Engineering polymer;

- Rod: Brass (CW614N UNI-EN 12164);

- Screw: Steel class 4.8 DIN 7985;

- Springs: Stainless steel (AISI 302 UNI EN 10088-3) Class C steel UNI 3823 W;

- Seal washers: NBR/PTFE rubber; THREAD: 31/S4- 1/4 F 1/4” BSP- 1/4” BSP; 31/S4- AIR 11 1/4” BSP- bayonet fitting; 31/S6- 1/4 F 1/4” BSP- 1/4” BSP; OPERATING TEMPERATURE: -25°C (13°F), +50°C (122°F); OPERATING PRESSURE: 1.5÷9 bar (22 psi÷ 130 psi); THREAD: 1/4” F BSP Cylindrical gas thread ISO 228 (BSPP).

AH101702

Scheda tecnica

Ref
AH101702
EAN
8022219040921
Marca
ANI

Riferimenti Specifici

ean13
8022219040921
