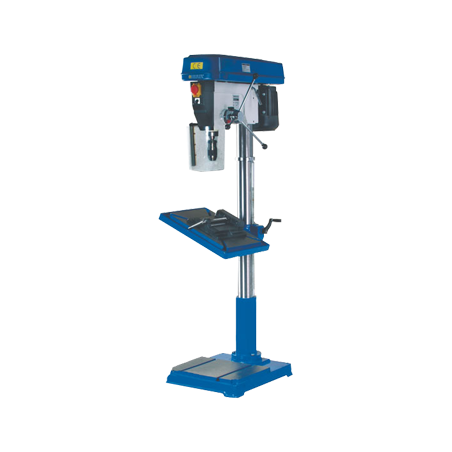

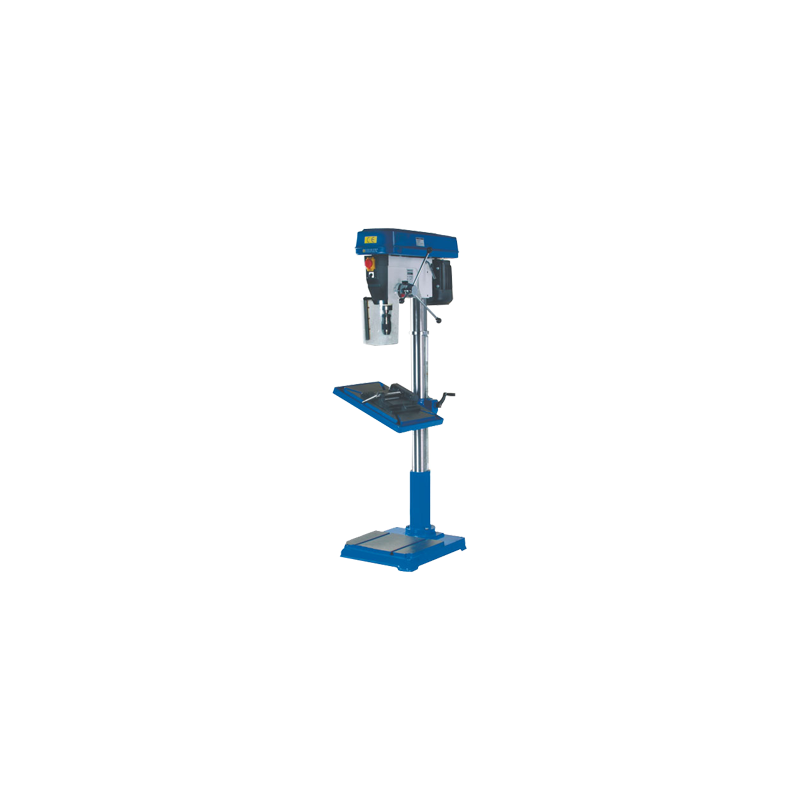

BELFLEX Drilling Machine Floor Type BF-35-TC

- Keyless chuck;

- Clamping vise 150 mm.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

Floor type drilling machines with:

- Speed change by belts;

- Spindle on ball bearings;

- Strong motors and pulleys in casting;

- Worktable travel by rack;

- Table turning around column 360º;

- Swivelling table at 45º;

- Change of speeds by levels;

- Chuck guard with microswitch;

- Safety limit switch at cover;

- Emergency stop switch.

AB441615000

Scheda tecnica

Ref
AB441615000
EAN
8423640961647
Marca
BELFLEX
Código ASIN
B00SP8Y960
Potência
2,2 KW - 3 HP
Peso
148 KG
Velocidade
210-2160 RPM
Voltagem
230V-F1
Altura Total
1780 MM
Capacidade da broca
32 MM
Número de cone morse
MT4
Diâmetro da coluna
92 MM
Dimensão da mesa
473 X 410 MM
Distância portabrocas-coluna
267 MM
Número de velocidades
12
Profundidade da broca
122 MM
