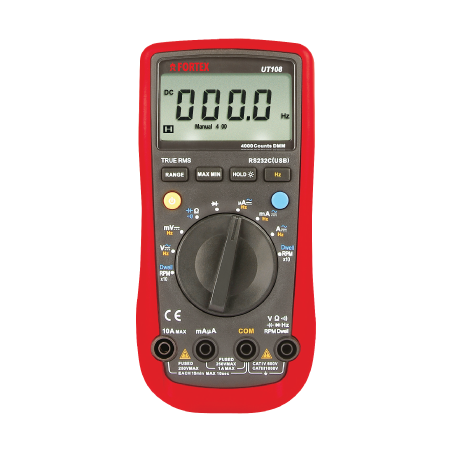

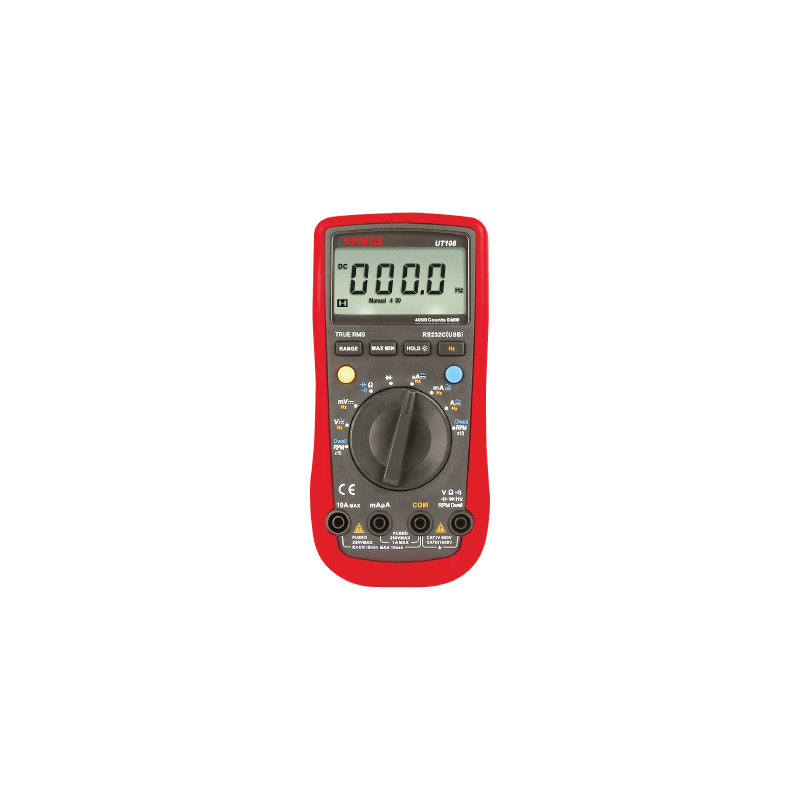

BELFLEX Automotive Multimeter UT108

- Supplied with Software, RS232 Interface cable and test leads;

- Double safety insulation CAT.III 1000V, CAT.IV 600V, EN 61010-1, EN 61326-1;

- AC Voltage: 40mV/400mV/4V/40V/400V/1000V;

- DC Current: 400µA/4000µA/40mA/400mA/4A/10A;

- AC Current: 400µA/4000µA/40mA/400mA/4A/10A;

- Resistance: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

Digital multimeter with large display screen backlit especially suitable for automotive;

- To measure AC / DC current and voltage, resistance, capacitance, frequency and temperature;

- It also has the following test functions: Dwell, tachymeter, diodes, continuity with buzzer, maximum minimum mode, data memory, input impedance for measuring DC voltage (> 10MΩ), standby mode and low battery warning;

- Max.display 3999.

AB520000055

Scheda tecnica

Ref
AB520000055
EAN
8423640142053
Marca
BELFLEX
Código ASIN
B00LXCQS64
Capacidade
10NF/100NF/1000NF/10ΜF/100ΜF
Peso
362 GR
Bateria
9V (6F22)
Dimensão do dispositivo
180 X 87 X 47 MM
Dimensão do ecrã
65 X 43 MM
Frequência
10HZ - 1MHZ
Precisão da capacidade
± 3% + 5
Precisão corrente AC
± 1,2% + 5
Precisão corrente DC
± 1% + 2
Precisão da frequência
± 0,1% + 4
Precisão de resistência
± 1% + 5
Precisão tensão AC
± 0,8% + 3
Precisão tensão DC
± 0,5% + 3
Tensão DC
4V/40V/400V/1000V
Precisão da temperatura
+ 1 1% + 10
Dwell 4,6,8 Cilindros
+ 1 3% + 5
Taquímetro 4,6,8 cilindros
± 3% + 5
