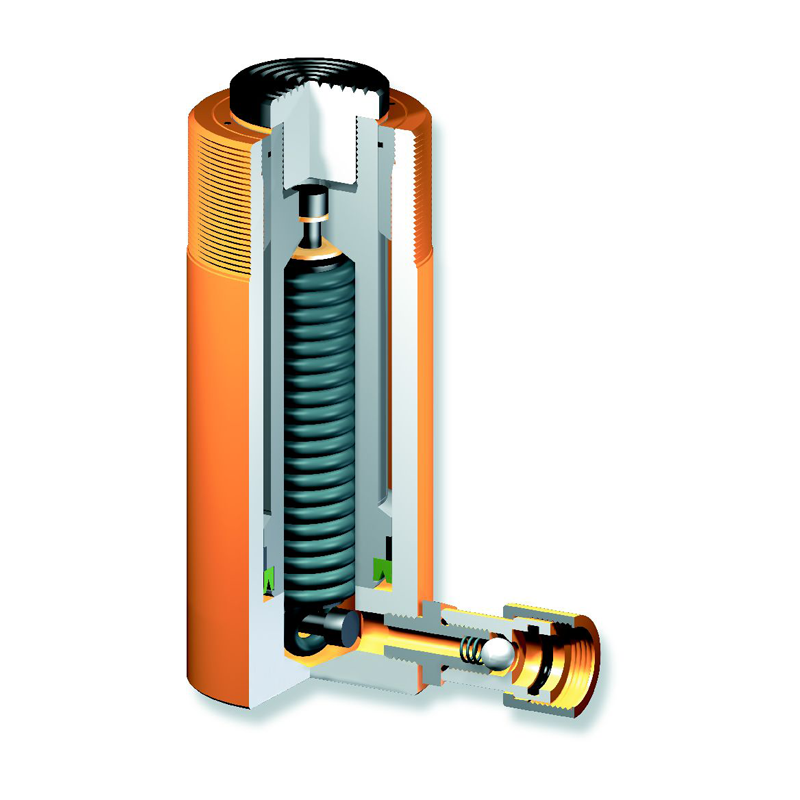

MEGA Hydraulic Cylinder General Purpose Single Acting Spring Return CSRA-31B 194mm

- Working pressure: 700 kg/cm2/10.000 psi;

- With a removable grooved saddle, pressure mounted or screwed in the piston head.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Working pressure: 700 kg/cm2/10.000 psi;

- This piston has a salt bath nitriding treatment or a hard chrome plating, depending on the model, to resist corrosion and for longer life.With built-in bronze guide for easier sliding of piston;

- This cylinder is fitted with a removable grooved saddle, pressure mounted or screwed in the piston head;

- They are also equipped with a high flow female quick coupler with dust cap, ref. A-5507-H.

CSRA-31B

Scheda tecnica

Ref
CSRA-31B
EAN
5608907326466
Marca
MEGA
Cor
CINZENTO
Altura mínima
375 MM
Capacidade de óleo
220 CM³
Força nominal
31 T
Percurso
50 MM
Peso
11 KG
Seção útil
44,18 CM²

Riferimenti Specifici

ean13
5608907326466
