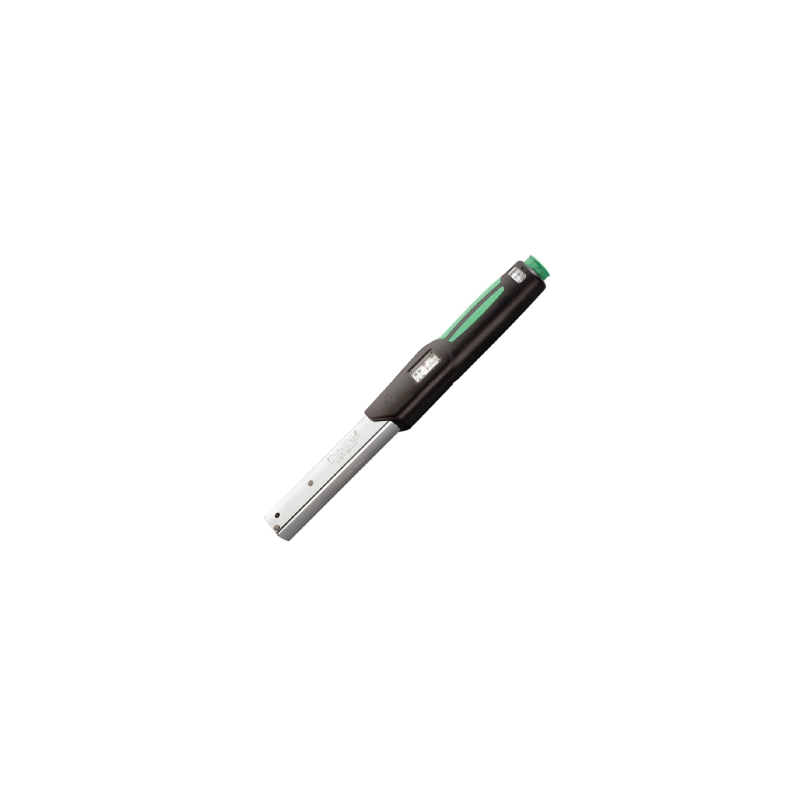

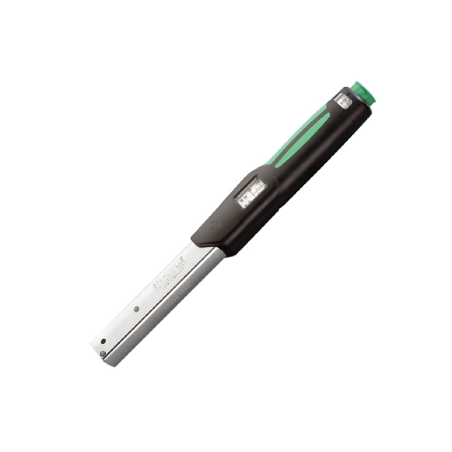

730N/40 CHAVE DINAMOMETRICA
search
  • 730N/40 CHAVE DINAMOMETRICA

730N/40 CHAVE DINAMOMETRICA

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Click-type;

- Mount for interchangeable insert tools;

- QuickRelease safety lock;

- Fast, accurate setting thanks to QuickSelect quick-action adjuster;

- Dual stop signal;

- Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales;

- The measuring element is only under load while force is being applied, no need for manual reset to zero;

- Can be applied for either clockwise or anticlockwise tightening by turning the inserts over;

- Any force applied to the tool after the 'click' or applied in the opposite direction to the current function – e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it;

- Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol);

- Calibration using perfectControl calibrating unit nº 7794 or calibration system No 7706. Adjustment without disassembly;

- With certificate;

- Registered design;

- Display deviatio

S50181040

Scheda tecnica

Ref
S50181040
EAN
4018754139552
Marca
STAHLWILLE
Código ASIN
B000Y8UAV2
Comprimento total
607 MM
Peso
1655 G
Tipo
MANOSKOP® 730N
Altura
23 MM
Diâmetro
28 MM
Tamanho
40
Alcance do torque
80 - 400 N·M
Divisão da escala
20 N·M
Tamanho do encaixe
14 X 18 MM
