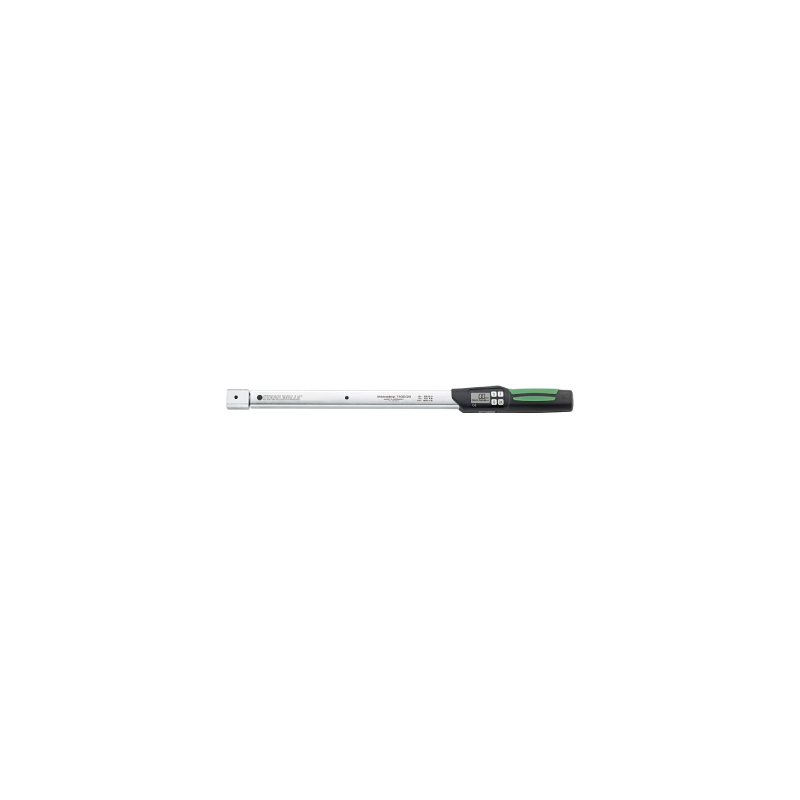

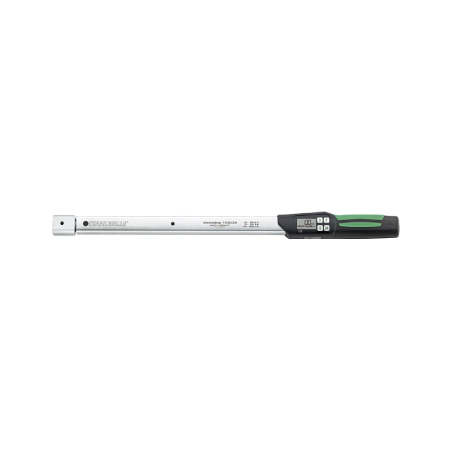

STAHLWILLE Service/Series MANOSKOP® Torque Wrenches with Reversible Ratchet Insert Tool Size 40

- The square drive enables a broad range of insert tools;

- Dual stop signal with tactile and acoustic cut-out signals;

- Easy-to-read display,

- Rapid setting. The convenient keypad enables the torque wrench to be quickly and easily set;

- Power supply two 1.5 V AA batteries;

- Angle controlled tightening;

- Simply attach the Angle Module No 7395-1 and connect the cable to the interface

- Data output USB interface;

- 2-component handle has ergonomically designed, green softer layers and is resistant to oils, grease, fuels, brake uids and Skydrol;

- QuickRelease safety lock.

  Security policy

Security policy (edit with the Customer Reassurance module)

  Delivery policy

Delivery policy (edit with the Customer Reassurance module)

  Return policy

Return policy (edit with the Customer Reassurance module)

- Tactile and acoustic trigger signal;

- Mount for interchangeable insert tools;

- QuickRelease safety lock;

- Fast setting using convenient keypad;

- Automatic compensation to achieve correct tightening torque even if a changed extension is entered;

- Overload protection by means of acoustic and visual signals;

- Automatic keypad lock prevents inadvertent changes;

- Angle-controlled measurements using Angle Module nº 7395-1 (refer to page 201);

- Display also works for anticlockwise torque;

- Units of measurement: N·m, ft·lb, in·lb;

- Different tolerance limits can be set for each joint;

- Visual red and green signals in the display confirm the status of the joint;

- Additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code;

- Up to 7.500 measurements can be stored;

- USB interface;

- Automatic notification of the next calibration date;

- Calibration using perfectControl calibrating unit nº 7794 or calibration system nº

S96501840

Datablad

Ref
S96501840
EAN
4018754175666
Marca
STAHLWILLE
Código ASIN
B007925ML4
Peso
2232 G
Tipo
MANOSKOP® 730D
Tamanho
40
Alcance do torque
40 - 400 N·M
Tamanho do encaixe
14 X 18 MM
Resolução do display
1,0/0,1 N·M
